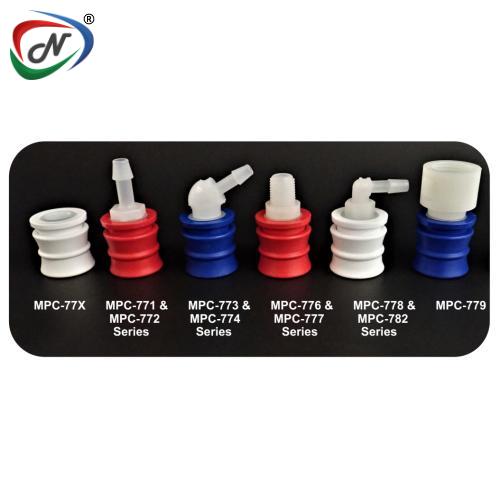

High-Temp Female Hansen Connectors

#NMPC3

Product Description

High-Temp Female Hansen Connectors

Main Features:

  • High-Temp female Hansen Connectors are also known as dialyzer port quick disconnects.
  • These Connectors are meant for connecting a dialysate port of a dialyzer to a dialysate-delivery line of a dialysis machine.
  • MPC-771-R have Superb Chemical Resistance!
  • Effortlessly Connected & Disconnected from Dialyzer port!
  • These high temp Hansen connectors are made for use with machine using heat sterilization, including Fresenius® and Aksys®.
  • O-Ring are made up of Viton.
  • Ball are made up of Borosilicate Glass.
  • Accessible in Red, White or Blue colours
  • 10 pcs. are packed in per box & 80pcs. are packed in per case.

Product Equivalence:

  • MPC-773 — MPC-1010
  • MPC-771 — MPC-1011
  • MPC-772 — MPC-1013
  • MPC-784 — MPC-1012

Part Number

Configuration

Size

MPC-771

Barbed

Fits 1/4? ID Tubing

MPC-772

Barbed

Fits 5/16? ID Tubing

MPC-773

Angled Barb

Fits 1/4? ID Tubing

MPC-774

Angled Barb

Fits 5/16? ID Tubing

MPC-776

Threaded
Comparable To:
RPC® #D300-0108

3/8-18 NPT Male

MPC-777

Threaded

1/4-18 NPT Male

MPC-778

90° Angled Barb

Fits 5/16? ID Tubing

MPC-779

Threaded (Internal)

1/2-14 NPT Female

MPC-782

90° Angled Barb

Fits 1/4? ID Tubing

MPC-784

Barbed

Fits 1/8? ID Tubing



Weight

355.8 g

Dimensions

9.00 × 7.00 × 4.00 in

Color

Blue, Red, White

Configuration

MPC-771, MPC-772, MPC-773, MPC-774, MPC-776, MPC-777, MPC-778, MPC-779, MPC-782, MPC-784



Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NMPC3
Manufacturer Code MPC-771-R
Manufacturer MPC
Weight 355.8 g
Type Quick Fittings
