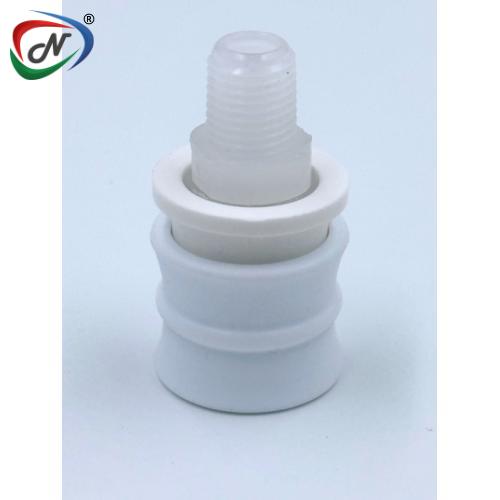

MPC-777A-W High Temp Female Hansen Connector – Threaded - Male 1/4-18 NPTF - White
#NSSP007544
Product Description
MPC-777A-W High Temp Female Hansen Connector – Threaded -
Male 1/4-18 NPTF - White
- Connectors for connecting a dialysate port of a dialyzer to
a dialysate-delivery line of a dialysis machine.
- Excellent chemical resistance.
- Easily engaged and disengaged from the dialyzer port.
- These high temp Hansen connectors are made for use with
machines using heat sterilization, including Fresenius® and
Aksys®.
- O-Ring Material: Viton
- Ball Material: Borosilicate Glass
- Available in Red, White, or Blue
- Packaged 10pcs. Per box / 80 pcs. Per case
Product Equivalence:
- MPC-773
? MPC-1010
- MPC-771
? MPC-1011
- MPC-772
? MPC-1013
- MPC-784
? MPC-1012
|
Part Number |
Configuration |
Size |
|
MPC-771 |
Barbed |
Fits 1/4? ID Tubing |
|
MPC-772 |
Barbed |
Fits 5/16? ID Tubing |
|
MPC-773 |
Angled Barb |
Fits 1/4? ID Tubing |
|
MPC-774 |
Angled Barb |
Fits 5/16? ID Tubing |
|
MPC-776 |
Threaded |
3/8-18 NPT Male |
|
MPC-777 |
Threaded |
1/4-18 NPT Male |
|
MPC-778 |
90° Angled Barb |
Fits 5/16? ID Tubing |
|
MPC-779 |
Threaded (Internal) |
1/2-14 NPT Female |
|
MPC-782 |
90° Angled Barb |
Fits 1/4? ID Tubing |
|
MPC-784 |
Barbed |
Fits 1/8? ID Tubing |
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007544 |
| Manufacturer Code | MPC-777A-W |
| Manufacturer | MPC |
| Type | Fittings |
