MPC22002T03 1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert
#NCPCMPC22002T03
Product Description
MPC22002T03 1/8 Hose Barb Non-Valved Class VI Polycarbonate Coupling Insert
Main Features:
A thumb latch that is ergonomically designed .Materials classified as Class VI by the USP .sterilizable by autoclave, Etc, e-beam, and gamma radiation .The hose barb is parting line-free .- BSE/TSE free materials
Main Benefits:
Even when wearing gloves, this device is easy to operate .Meet the biocompatibility requirements.Designed for single-use applications that are robust and economical .- Eliminates potential leak
path.
- Meet ADCF requirements.
Main Specifications:
· Material: Polysulfone, USP Class VI, ADCF
· Material Finish: Natural
· Pressure Range: Up to 60 psi, 4.1 bar
· Color: Purple Tint
· Mounting Option: Free Floating
· Sterilization: Gamma, autoclave
· Temperature Range: -40°F - 250°F (-40°C - 121°C)
· Seal Options: Buna-N USP Class V
· Valve Option: Non-Valved
· Body Type: Insert
· Bag Qty: 250
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPCMPC22002T03 |
| Manufacturer Code | MPC22002T03 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products
NS6D10008 1/2 NPT Valved Coupling Body
NESPL Code - #NCPC148
NS6D10008BSPT 1/2 BSPT Valved Coupling Body
NESPL Code - #NSSP003199

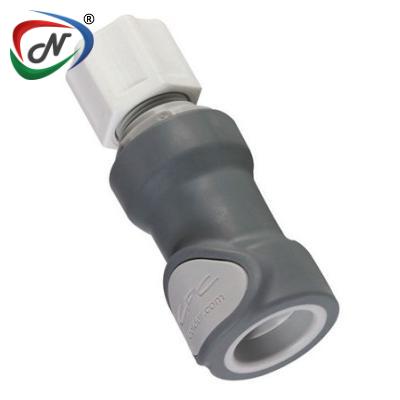

NS6D13008 1/2 JACO Valved In-Line Molded Grey Polypropylene Coupling Body
