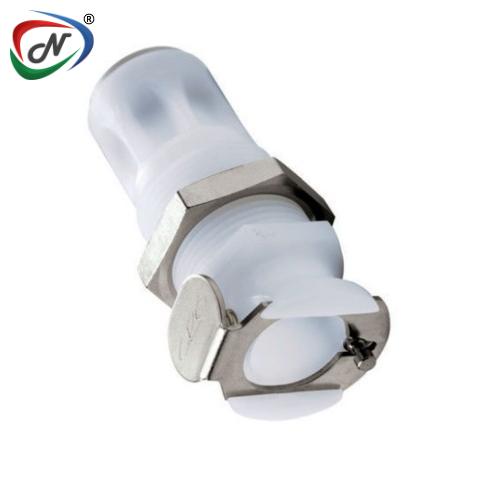

PLC11004 1/4 JG Non-Valved Panel Mount Acetal Coupling Body
#NSSP004994
Product Description
PLC11004 1/4 JG Non-Valved Panel Mount Acetal Coupling Body
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODIES – Acetal
TERMINATION | PANEL MOUNT JG® PUSH-TOCONNECT |
TUBING SIZE | 1/4" OD |
METRIC EQ | 6.4mm OD |
STRAIGHT THRU | PLC11004 |
SHUTOFF | PLCD11004 |
A (Height/Diameter) | 0.88 (22.4) |
B (Total Length) | 1.95 (49.5) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.
NOTE: JG is a registered trademark of John Guest USA, Inc.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-PLC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004994 |
| Manufacturer Code | PLC11004 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
