PLC42004 1/4 Hose Barb Non-Valved Panel Mount Coupling Insert
#NSSP003061
Product Description
PLC42004
1/4 Hose Barb Non-Valved Panel Mount Coupling Insert
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Weight: .0105 Ounce
- Bag Qty: 25
|
TERMINATION |
PANEL MOUNT HOSE BARB |
|
TUBING/THREAD SIZE |
1/4" ID |
|
METRIC EQ |
6.4mm ID |
|
STRAIGHT THRU |
PLC42004 |
|
SHUTOFF |
PLCD42004 |
|
A (Height/ Diameter) |
0.94 (23.9) |
|
B (Total Length) |
1.91/2.05 (48.5/52.1) |
All measurements are in inches (millimetres) unless otherwise noted.

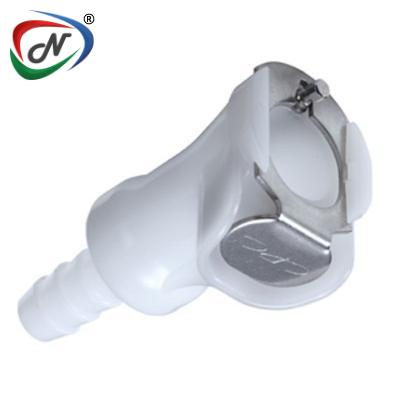

Note: Image is just for ref.
Click to download : CPC PLC Series Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003061 |
| Manufacturer Code | PLC42004 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.01kg |
| Type | Quick Fittings |
