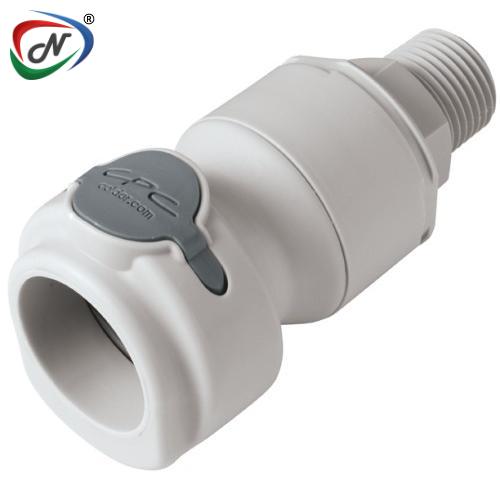

NSHD20008V 1/2 JACO Valved In-Line Molded Grey Grey Polypropylene Coupling Insert FKM Seal
#NSSP006998
Product Description
NSHD20008V 1/2 JACO Valved In-Line Molded Grey Grey Polypropylene Coupling Insert FKM Seal
Main Features:
- Non-Spill
Design
- Pressure-balanced
design
- Springless
flow path design
- Optional
colour coding
Main Benefits:
- Ultimate
protection from chemicals & fumes
- Failsafe
disconnect, even under pressure
- Easy
to reconnect at high pressure
- Eliminates
source of metallic contaminants
- Helps prevent accidental misconnects
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color:
Gray with dark gray accent
- Mounting
Option: Thread
- Temperature
Range: 32°F - 120°F (0°C - 49°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Bodies
- Spillage:
<0.1 cc (ml) per disconnect, 0.03cc per connect
- Bag
Qty: 5
Click to download : CPC-NSH-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006998 |
| Manufacturer Code | NSHD20008V |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
