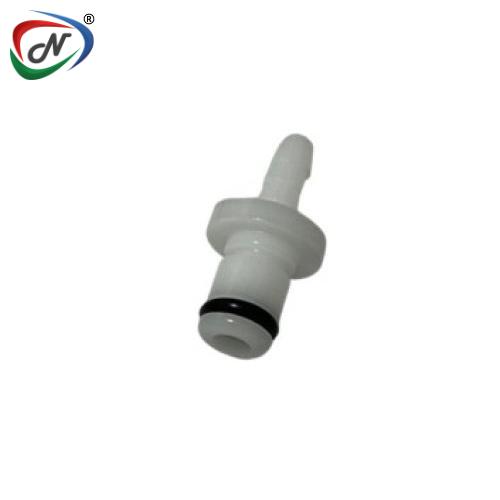

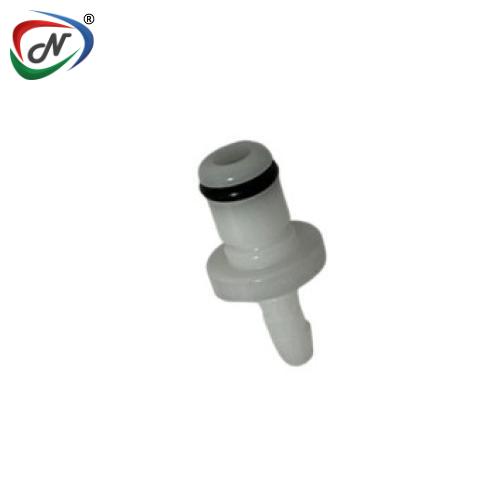

PMC2202 1/8 Hose Barb Non-Valved In-Line Acetal Coupling Insert
#NSSP004996
Product Description
PMC2202 1/8 Hose Barb Non-Valved In-Line Acetal Coupling Insert
Main Features:
- Brass
material
- High
temperature capability
- Colder
thumb latch
- Compatible
Main Benefits:
- Durable
and able to withstand higher pressure and temperature
- MC
mates with PMC and PMC12 Series couplings
- Versions
rated to 400°F (204°C )
- One -
hand connection and disconnection
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 5.5 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: 32°F - 150°F (0°C - 66°C)
- Seal Options: BUNA - N
- Valve Options: Non Valved
- Body Type: Insert
- Bag Qty: 250
|
COUPLING INSERT |
Acetal |
|
TERMINATION |
IN-LINE
HOSE BARB (NON-VALVED SHOWN) |
|
TUBING/THREAD
SIZE |
1/8" ID |
|
METRIC
EQ |
3.2mm
ID |
|
STRAIGHT
THRU |
PMC2202 |
|
SHUTOFF |
PMCD2202 |
|
A
(Height/Diameter) |
0.5 (12.7) |
|
B
(Total Length) |
1.00/1.67
(25.4/42.4) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-MC-SERIES-CATALOGUE Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004996 |
| Manufacturer Code | PMC2202 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
