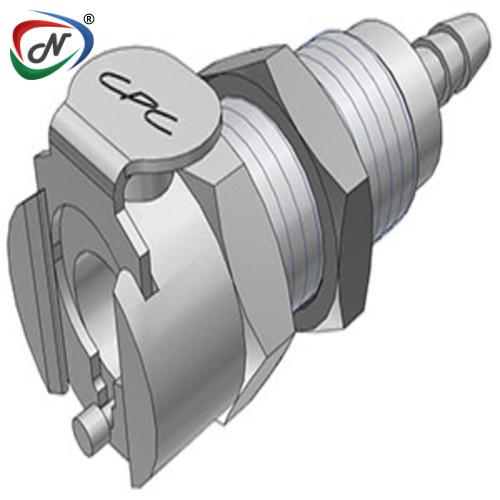

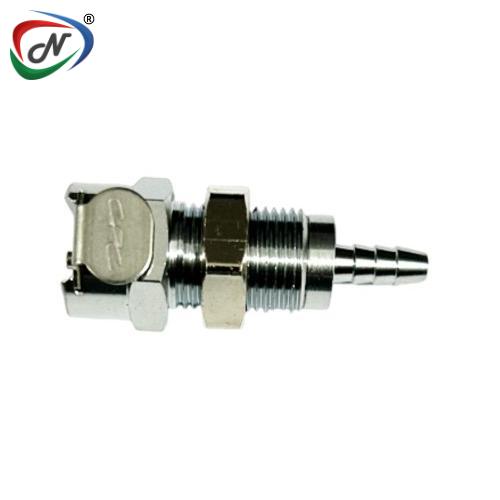

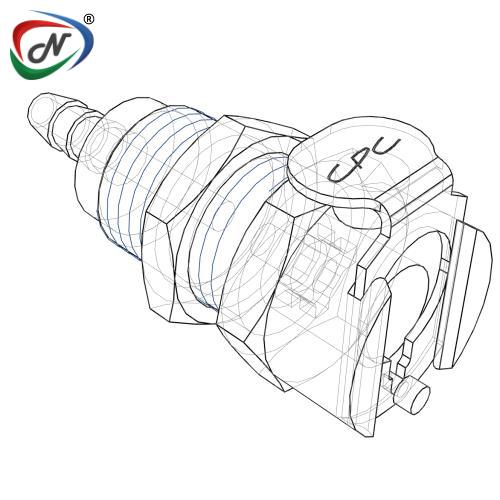

MCD1602 1/8 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body
#NSSP003237
Product Description
MCD1602 1/8 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body
Main Features & Benefits:
|
Features |
Benefits | ||
|
Brass material |
Durable and able to
withstand higher pressure and temperature. | ||
|
Compatible |
MC mates with PMC and PMC12
Series couplings. | ||
|
High temperature capability |
Versions rated to
400°F (204°C). | ||
|
Colder thumb latch |
One-hand connection and
disconnection. | ||
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 10
COUPLING BODY – Chrome-plated Brass
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING SIZE | 1/8" ID |
METRIC EQ | 3.2mm ID |
STRAIGHT THRU | MC1602 |
SHUTOFF | MCD1602 |
A (Height/Diameter) | 0.76 (19.3) |
B (Total Length) | 1.67 (42.4) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : MCD1602 1/8 Hose Barb Valved Panel Mount Chrome-plated Brass Coupling Body Spec Sheet Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003237 |
| Manufacturer Code | MCD1602 |
| HSN Code | 8481801095 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
