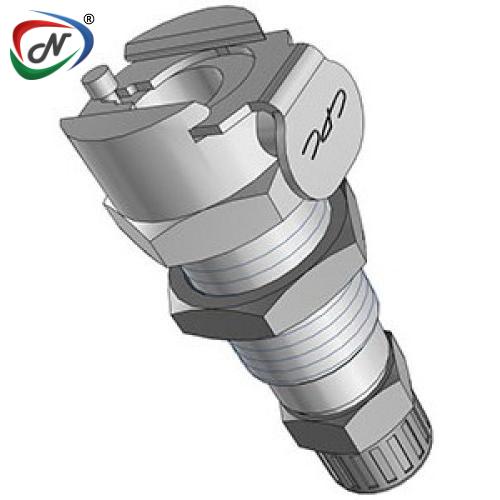

MCD1204HT 1/4 PTF Valved Panel Mount Chrome-plated Brass Coupling Body High Temp Valve
#NSSP006708
Product Description
MCD1204HT 1/4 PTF Valved Panel Mount Chrome-plated Brass Coupling Body High Temp Valve
Main Features:
- Brass Material
- compatible
- High temperature capability
- Colder thumb latch
Main Benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series couplings
- Versions rated to 400°F (204°C )
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Bodies
- Bag Qty: 10
Click to download : CPC-MC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006708 |
| Manufacturer Code | MCD1204HT |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
