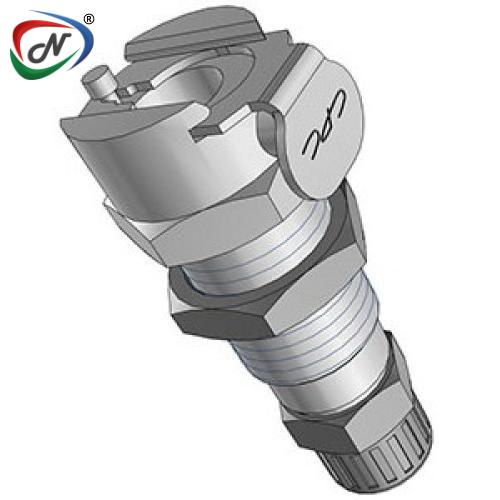

MCD1204 1/4 PTF Valved Panel Mount Chrome-plated Brass Coupling Body
#NSSP006706
Product Description
MCD1204 1/4 PTF Valved Panel Mount Chrome-plated Brass Coupling Body
Main Features:
- Brass material
- High temperature capability
- Colder thumb latch
- Compatible
Main Benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series coupling
- Versions rated to 400°F (204°C
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Bodies
- Bag Qty: 10
Mating parts:
- PMC2404
- PMC4204
- PMCD2004
- PMC21025
Click to download : CPC-MC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006706 |
| Manufacturer Code | MCD1204 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
