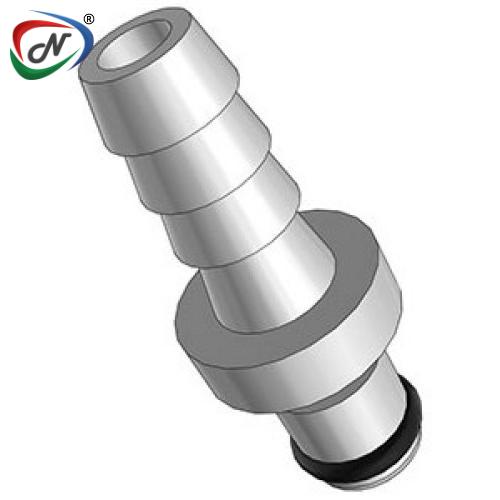

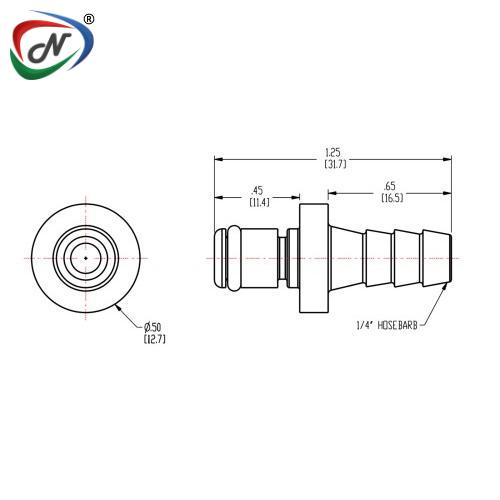

MC2204 1/4 Hose Barb Non-Valved In-Line Chrome -plated Brass Coupling Insert
#NSSP006612
Product Description
MC2204 1/4 Hose Barb Non-Valved In-Line Chrome -plated Brass Coupling Insert
Main Features:
- Brass Material
- compatible
- High temperature capability
- Colder thumb latch
Main Benefits:
- Durable and able to withstand higher pressure and temperature
- MC mates with PMC and PMC12 Series couplings
- Versions rated to 400°F (204°C )
- One-hand connection and disconnection
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 250 psi, 17.3 bar
- Color: Chrome
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options:
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 10
Mating parts:
- PMCD1002
- PMC1002BSPT
- PMCD1601
- PMC1304
Click to download : CPC-MC-SERIES-CATALOGUEMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006612 |
| Manufacturer Code | MC2204 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
