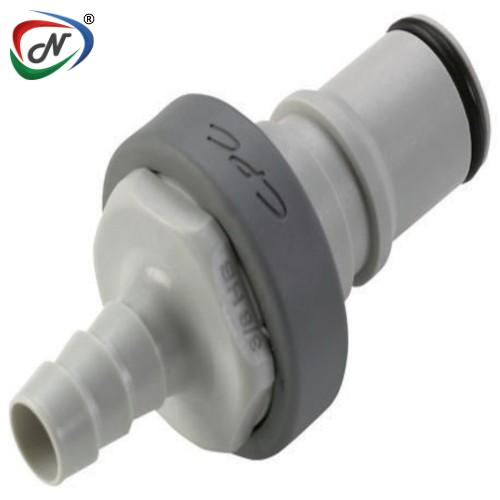

NS4D22004 1/4 Hose Barb Valved In-Line Coupling Insert
#NSSP003223
Product Description
NS4D22004
1/4 Hose Barb Valved In-Line Coupling Insert
Main Features:
- Non-Spill Design
- Colour Coding
- Glass -Fitted Polypropylene
Main Benefits:
- Disconnect under pressure with no spills
- Instant visual differentiation of media lines
- Durable & Compatible with many chemicals.
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark grey overmold
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Spillage: <0.10 cc per disconnect, 0.10cc per connect
- Bag Qty: 25
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
ABS SHUTOFF | NS4D2200406 |
POLYPROPYLENE SHUTOFF | NS4D22004 |
A(Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 1.98 (50.3) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Note: Image is just for ref.
Click to download : CPC-NS4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003223 |
| Manufacturer Code | NS4D22004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products
NS4D17004 1/4 Hose Barb Valved In-Line Coupling Body
NESPL Code - #NSSP003222
NS4D22006 3/8 Hose Barb Valved In-Line Coupling Insert
NESPL Code - #NSSP003175
