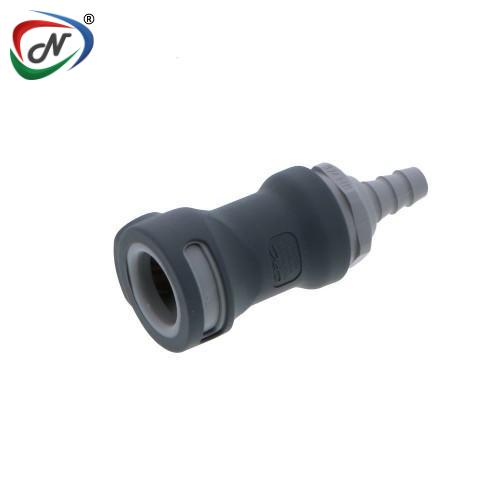

NS4D17004 1/4 Hose Barb Valved In-Line Coupling Body

#NSSP003222

Product Description

NS4D17004

1/4 Hose Barb Valved In-Line Coupling Body

Main Features:

Non-Spill Design
Colour Coding
Glass -Fitted Polypropylene

Main Benefits:

Disconnect under pressure with no spills
Instant visual differentiation of media lines
Durable & Compatible with many chemicals.

Main Specifications:

Material: Polypropylene
Material Finish: Molded Grey
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: Grey with dark grey overmold
Mounting Option: Free Floating
Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: EPDM
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Body
Spillage: <0.10 cc per disconnect, 0.10cc per connect
Weight: .03 Ounce
Bag Qty: 25

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/4" ID*
METRIC EQ.	6.4mm ID*
ABS SHUTOFF	NS4D1700406
POLYPROPYLENE SHUTOFF	NS4D17004
A(Height/Diameter)	1.05 (26.7)
B (Total Length)	2.34 (59.4)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: Image is just for ref.

Read More

Click to download : Dimensions/Design

Medical (Core) & Thermal Industry

Additional Information

NESPL Code	NSSP003222
Manufacturer Code	NS4D17004
HSN Code	84818090
Manufacturer	CPC Quick Connect & Disconnect Solutions
Type	Quick Fittings
