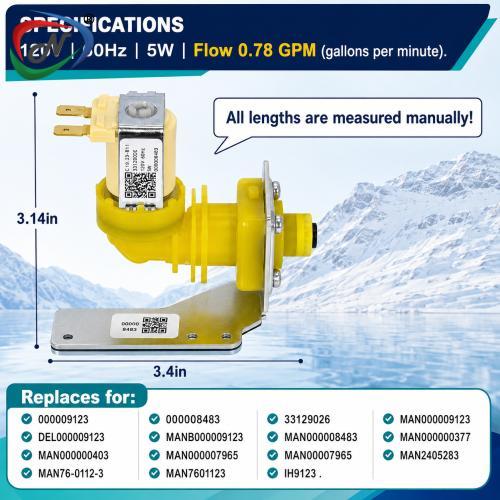

000009123 / IH9123 / 33129026 Water Inlet Valve – 120V, 60Hz, 5W for Ice Machines

000009123 / IH9123 / 33129026 Water Inlet Valve – 120V, 60Hz, 5W for Ice Machines

The 000009123 Water Inlet Valve, also referenced as IH9123 and 33129026, is a replacement water-control component designed for compatible Manitowoc commercial ice machines.

The water inlet valve controls the supply of fresh water entering the ice machine during operation. When electrically energized, the solenoid-operated valve opens to allow the required water flow into the machine's water system. Proper inlet-water control is essential for maintaining the correct water supply for consistent ice production.

A worn, blocked, leaking, or electrically failed inlet valve can result in insufficient water entering the machine, water leakage, improper filling, or reduced ice-making performance.

Main Features:

• 💧 Controlled Water Supply – Regulates incoming water flow to the ice machine.
• ⚡ Solenoid-Operated Design – Electrically activates to open and control the water supply.
• ❄️ Designed for Commercial Ice Machines – Suitable for compatible Manitowoc ice-making equipment.
• 🔄 Replacement Part References – Commonly associated with 000009123, IH9123 and 33129026.
• 🛠️ Service Replacement Component – Suitable for replacement during ice-machine maintenance and repair.
• 📈 Supports Reliable Ice Production – Correct water delivery helps maintain consistent machine operation.
• 🔩 Mounting Bracket Configuration – Designed for installation within compatible ice-machine assemblies.

Main Specifications:

Function of the Water Inlet Valve

During the appropriate stage of the ice-making cycle, the machine energizes the water inlet valve. The solenoid opens the valve and allows fresh water to enter the ice machine.

Once the required amount of water has entered the system, the valve closes to stop additional water flow.

Reliable valve operation therefore helps provide:

• Correct water filling
• Controlled incoming water flow
• Consistent ice-making cycles
• Reduced risk of overfilling or water leakage
• Reliable commercial ice-machine operation

Common Replacement Symptoms

Inspection or replacement of the water inlet valve may be required when the ice machine experiences:

• 🚫 No water entering the machine
• 💧 Insufficient water filling
• 💦 Water continuing to enter when the valve should be closed
• ⚠️ Water leakage around the valve assembly
• ❄️ Reduced or inconsistent ice production
• 🔌 Solenoid valve not opening when energized
• 🚿 Restricted water flow caused by valve blockage or wear

These symptoms can also result from other components or water-supply problems, so proper troubleshooting is recommended before replacement.

Part Number References

000009123 | IH9123 | 33129026 | 000008483

Compatibility

Part 000009123 / IH9123 / 33129026 is reported for use with a broad range of compatible Manitowoc commercial ice-machine configurations, including models within several:

• I Series
• IB Series
• ID Series
• IR Series
• IY Series
• JC Series
• Q Series
• QR Series
• S Series

Reported compatible examples include:

ID Series:
ID0452A, ID0453W, ID0456A, ID0456W, ID0502A, ID0503W, ID0592N, ID0682C, ID0686C

IR Series:
IR0500A, IR0501W, IR0520A, IR0521W, IR0590N, IR0870C

IY Series:
IY0454A, IY0455W, IY0456A, IY0456W, IY0504A, IY0505W, IY0594N, IY0684C, IY0686C

Other Reported Models:
JC0495, JC0895, Q0600C, Q0800C, Q1000C, S0600C, S0680C, S0850C

Main  Applications:

🏨 Hotels & Hospitality
🍽️ Restaurants
☕ Cafés & Coffee Shops
🥤 Beverage Service Areas
🍺 Bars & Pubs
🏥 Healthcare Facilities
🏢 Commercial Kitchens
🧊 Commercial Ice-Making Systems
🔧 Ice Machine Service & Maintenance
