IMM000009120 Water Inlet Valve Kit – 115/120V, 60Hz, 5W

IMM000009120 Water Inlet Valve Kit – 115/120V, 60Hz, 5W

Replacement for Manitowoc 000009120 / 00008487 / 00008483 / IH9120

The IMM000009120 Water Inlet Valve Kit is an aftermarket replacement water-control component designed for compatible Manitowoc commercial ice machines. It replaces/reference-matches part numbers 000009120, 00008487, 00008483 and IH9120 and is intended to provide reliable control of incoming water during the ice-making cycle.

During operation, the electrically actuated solenoid valve opens when energized, allowing the required amount of water to enter the ice machine. When the electrical signal is removed, the valve closes and stops the incoming water supply. Proper inlet-valve operation is important for maintaining the required water level and supporting consistent ice production.

The IMM000009120 replacement is rated at 60 Hz and 5W. IMM aftermarket listings describe it as a 120V valve, while Manitowoc's technical service documentation specifies original part 000009120 as 115V, 60Hz, single-phase. For this reason, we recommend verifying the machine's electrical specification and exact model before ordering.

Main Features:

• 💧 Automatic Water Inlet Control – Regulates incoming water during the ice machine's operating cycle.
• ⚡ 115/120V, 60Hz Application – Designed as a replacement for compatible North American-voltage ice machine systems; verify machine rating before installation.
• 🔋 5W Solenoid Valve – Low-power electrically operated water-control valve.
• 🔄 Direct Replacement Application – Designed as an aftermarket replacement for 000009120.
• 🔧 Replacement Kit Configuration – Available as a kit with valve and installation/mounting components.
• 🧊 Supports Consistent Ice Production – Helps provide the required water supply during the machine's ice-making process.
• 🛠️ Service Replacement Component – Suitable for repairing machines with a failed, leaking, blocked or electrically defective inlet valve.
• ✅ Broad Machine Compatibility – 000009120 is used across multiple compatible S, Indigo and related ice-machine models.

Main Specifications:

The original Manitowoc service documentation specifically lists 000009120 as 115V/60Hz/1Ph and notes that this generation of inlet valve was introduced as a backward-compatible service replacement across multiple ice-machine generations.

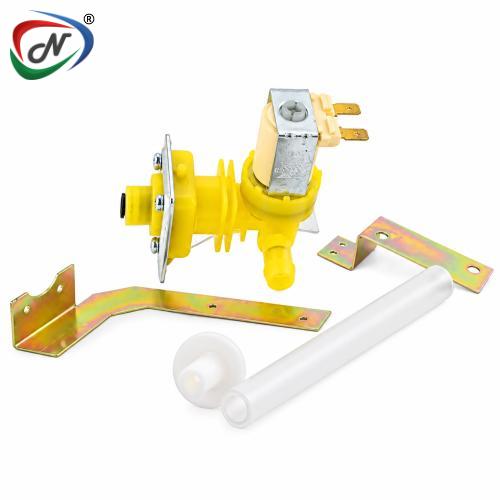

Kit Contents

Depending on the IMM package/version supplied, listings identify the kit as containing the water inlet valve, inlet tube/pipe, mounting/support brackets, mounting screws and installation instructions. Because published listings differ on whether four or six screws are supplied, I recommend not stating an exact screw quantity on the NESPL product page unless you confirm the contents of your physical stock.

Compatible Models

Published compatibility information for IMM000009120 includes models such as:

I0322, I0522P, I1470C, ID0302A, ID0303W, ID0306A, ID0306W, ID0322A, ID0323W, ID0521A, ID0522A, ID0523W, ID1472C, ID1476C, IR0522W, IY0304A, IY0305W, IY0306A, IY0306W, IY0324A, IY0325W, IY0524A, IY0525W, IY1474C, IY1476C, IYP0324A, K-0250, K-0350, K-0420, S1000C, S1470C, SD0302A, SD0303W, SD0322A, SD0323W, SD1072C, SD1472C, SR0300A, SR0301W, SR0320A, SR0321W, SY0304A, SY0305W, SY0324A, SY0325W and related variants.

Compatibility Note: Always verify the machine model, voltage and existing valve/part number before purchase. Manitowoc itself recommends checking the current replacement-part documentation for a particular machine because part applications can vary by model and production configuration.

Common Symptoms of a Faulty Water Inlet Valve

A water inlet valve may require inspection or replacement if the ice machine experiences insufficient water filling, no water entering the machine, continuous filling, water leakage, irregular water level, or inconsistent ice production. These symptoms can have other causes as well, so the machine should be properly diagnosed before replacing the valve.

Main Applications:

Suitable for maintenance and servicing of compatible:

• Commercial ice makers
• Restaurants and commercial kitchens
• Hotels and hospitality facilities
• Cafés and beverage outlets
• Convenience stores
• Foodservice establishments
• Ice-machine service and maintenance operations
