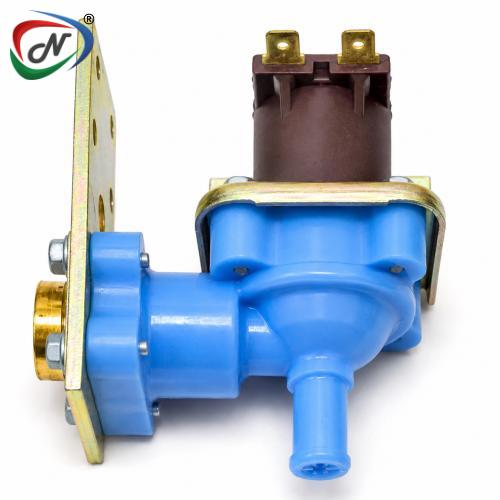

12-2548-01 Water Inlet Solenoid Valve

12-2548-01 Water Inlet Solenoid Valve – 24V, 60Hz, 1.25 GPM for Ice Machines

The 12-2548-01 Water Inlet Solenoid Valve is a replacement water-control component designed for compatible Scotsman commercial ice machines.

The valve controls the incoming water supply during the ice-making cycle. When the solenoid is electrically energized, the valve opens to allow water to enter the machine. It then closes when water flow is no longer required, helping maintain proper filling and consistent ice production.

A worn, blocked or electrically failed inlet valve can cause improper water filling, restricted water flow, leakage or inconsistent ice-machine performance.

Main Features:

• 💧 Controlled Water Inlet – Regulates incoming water supply during the ice-making cycle.
• ⚡ 24V Solenoid Operation – Electrically operated valve designed for compatible Scotsman ice machines.
• ❄️ Commercial Ice Machine Application – Designed for compatible Scotsman commercial ice equipment.
• 🔄 Automatic Open/Close Operation – Responds to the machine's electrical control signal.
• 🔧 Service Replacement Component – Suitable for repair and preventive maintenance applications.
• 🧊 Supports Consistent Ice Production – Proper water delivery helps maintain reliable ice-making cycles.
• 🔩 Integrated Mounting Configuration – Designed for installation within compatible ice-machine assemblies.

Main Specifications:

How the Water Inlet Valve Works?

During the water-fill stage of the ice-making cycle, the machine supplies an electrical signal to the 12-2548-01 solenoid valve.

When energized:

1. The solenoid activates.
2. The internal valve mechanism opens.
3. Fresh water enters the ice machine.
4. The required water is supplied to the ice-making system.
5. When the electrical signal stops, the valve closes and stops water flow.

This automatic operation helps maintain the correct water supply required for reliable ice production.

Compatibility

The 12-2548-01 Water Inlet Valve is used with select Scotsman commercial ice machines.

Reported Compatible Models

• CME2086
• CME256
• CME306
• CME456
• CME456R
• CME506
• CME506E
• CME506R
• CME656
• CME656R
• CME686
• CME806
• CME806R
• CME810
• CME810RL
• CME810RLS-1A
• CP2086
• SCE275

Important Compatibility Note

Compatibility should always be verified using the complete ice-machine model and serial number and the existing valve part number before ordering.

Part Number Cross-Reference

The valve may be associated with the following numbers:

• 12-2548-01 – Primary Part Number
• 12-3124-05 – Officially interchangeable part
• IH2548-01 – Replacement/reference number
• K-76858 – Robertshaw replacement/reference

Main Applications:

🏨 Hotels & Hospitality
🍽️ Restaurants & Commercial Kitchens
☕ Cafés & Coffee Shops
🥤 Beverage Service Areas
🍺 Bars & Pubs
🏥 Healthcare Facilities
🛒 Foodservice Operations
🧊 Commercial Ice-Making Equipment
🔧 Ice Machine Repair & Maintenance
