Catalogue Pack

PP 5 Micron 10'' Spun

#NSSP002063

Product Description

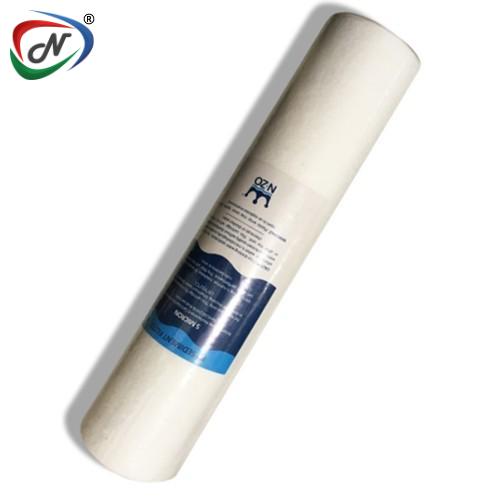

PP 5 MICRON 10" SPUN CARTRIDGE (N.ZO) MELT BLOWN FILTER (254*63*28MM*5U)

Use of Virgin Grade PP Resin. This consequences the cartridge appropriate for drinking water and additional food and beverage industry.
Worldwide Standard Dimensions.
Application of “3 Layer Descent thickness Formation” for low density drop and extended life supplying accomplish consumption of cartridge.

Main Applications:

RO Pretreatment
Food and Beverage
Chemical
Industrial Effluent
Dairy
Pharmaceutical
Electroplating
Paints
Aquaculture

Main Specifications:

Outer Diameter	63 ± 1mm (Standard Cartridges)
Outer Diameter	112 ± 1mm (Big Blue Cartridges)
Inner Diameter	28 ± 0.5mm
Length	10 / 20 / 30 / 40 / 50 inches (Standard Cartridges)
Length	10 / 20 inches (Big Blue Cartridges)
Micron Rating	0.5 / 1 / 5 / 10 / 25 Nominal
Efficiency	88 to 90%
Temperature	75 deg C Continuous
Flow Rate	1,000 LPH per 10”at a min line pressure of 2 Bar (Standard Cartridges)
Flow Rate	4,000 LPH per 10” at a min line pressure of 2 Bar (Huge Blue Cartridges)
