PI201612S REDUCING Straight Connector

#NSSP001966

Product Description

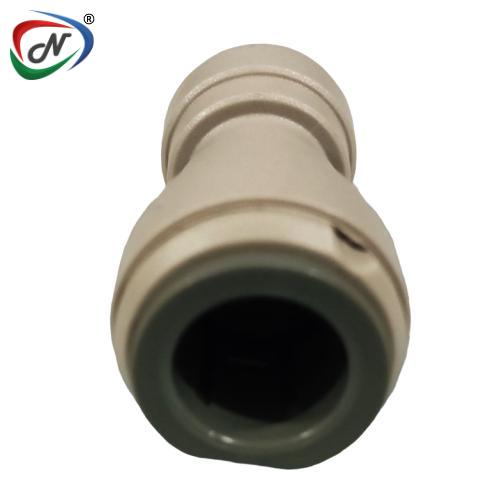

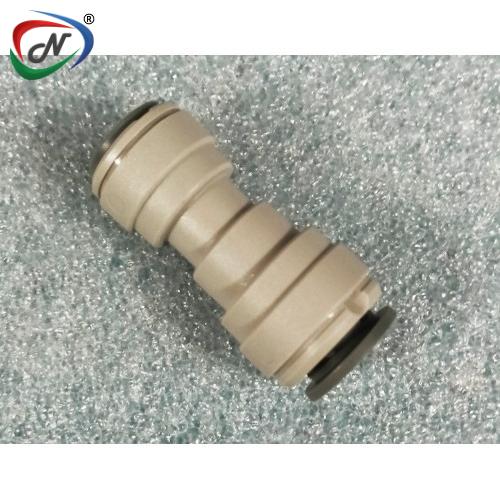

PI201612S 1/2"-3/8" REDUCING STRAIGHT CONNECTOR, PUSH-FIT

Reduces a supply feed to a smaller outlet size

John Guest grey push-fit acetal reducing straight connector fitting connects two pipes of an unequal connection size. Fast and simple to install, John Guest push-fit fittings create an instant push-fit connection and leak tight seal without the need for tools, hot works or sealing agents.

The unique collet locking design firmly and securely holds the pipe in place without deforming the pipe or restricting flow. Fittings are corrosion resistant and fully demountable, improving system performance and reducing system downtime during maintenance.

Manufactured in grey push-fit acetal copolymer, the fitting is suitable for foodstuff, potable liquids and inert gases. In accordance with the British Beer & Pub Association Code of Practice, fittings can also be used with N2/CO2 and mixed gas dispense lines, as well as air, pneumatic and vacuum applications. All John Guest fittings are manufactured and assembled in the UK.

Features and benefits

Rigid and hardwearing acetal copolymer material
Food grade material suitable for foodstuff, potable liquids, inert gases, air, pneumatic and vacuum
Instant push-fit connection and leak tight seal
Connect, disconnect and reconnect in seconds without tools
No scale build up improves performance and equipment lifespan
Superior flow characteristics
Compatible with LLDPE or soft metal pipe/tubing

SKU	Description	Tube OD "	Tube OD "	Accreditations

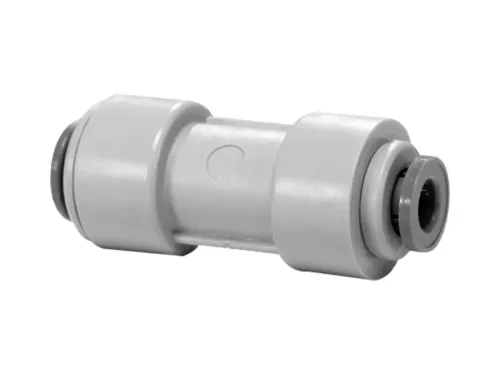

PI200806S	John Guest Reducing Straight Connector 1/4" × 3/16"	1/4	3/16	BSI WRAS
PI201006S	John Guest Reducing Straight Connector 5/16" × 3/16"	5/16	3/16	BSI WRAS
PI201008S	John Guest Reducing Straight Connector 5/16" × 1/4"	5/16	1/4	BSI WRAS
PI201206S	John Guest Reducing Straight Connector 3/8" × 3/16"	3/8	3/16	BSI WRAS
PI201208S	John Guest Reducing Straight Connector 3/8" × 1/4"	3/8	1/4	BSI WRAS
PI201210S	John Guest Reducing Straight Connector 3/8'' × 5/16"	3/8	5/16	BSI WRAS
PI201608S	John Guest Reducing Straight Connector 1/2" × 1/4''	1/2	1/4	BSI WRAS
PI201610S	John Guest Reducing Straight Connector 1/2'' × 5/16"	1/2	5/16	BSI WRAS
PI201612S	John Guest Reducing Straight Connector 1/2" × 3/8"	1/2	3/8	BSI WRAS
PM200804S	John Guest Reducing Straight Connector 5/16'' × 5/32"	5/16	5/32	BSI WRAS
