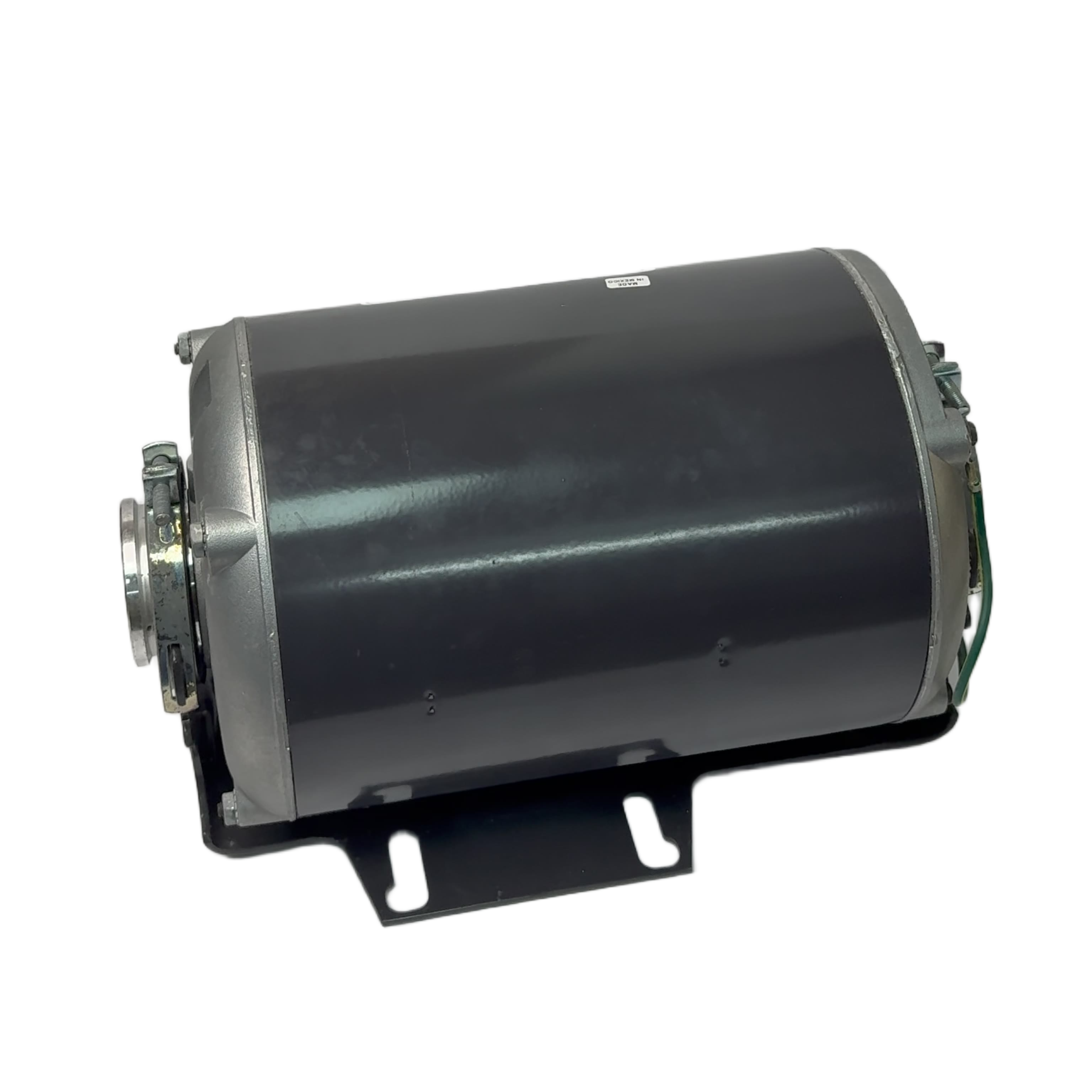

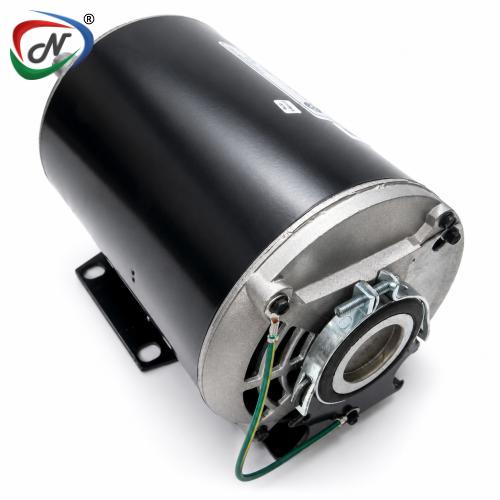

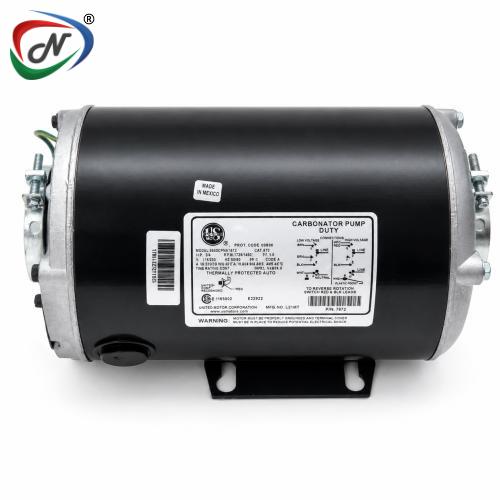

872 3/4 HP 115/230 VOLT U.S. MOTORS NIDEC

#NSSP000539

Product Description

872 3/4 HP 115/230 VOLT U.S. MOTORS NIDEC 1800 RPM 48Y FRAME PUMP MOTORS FOR CARBONATORS & MANY OTHER APPLICATIONS

MAIN SPECIFICATIONS:

Model_Number:

S055PNA7672012J

PRODUCT NAME:

.75 HP - ODP - 1725

PHASETYPE:

1_SPLIT PHASE

MOTOR ENCLOSURE:

ODP

HORSEPOWER:

.75

KILOWATTS:

0.6

POLES:

4

NUMBER SPEEDS:

1

RPM:

1725

RPM 2:

1425

HERTZ:

50

HERTZ 2:

60

VOLTS PRIMARY:

115/230 V

VOLTS :

115

VOLTS 2:

230

FRME :

48

SHAFT CODE:

Z

STATOR DIAMETER:

5.5

STACK:

3

MOUNTING:

RESILIENT

MOTOR TYPE:

FHP

OPPOSITE END BEARING:

6203

SHAFT END BEARING:

6203

AMBIENT:

40

ROTATION:

CCW LEAD END REV

SERVICE FACTOR:

1

SHIPPING WEIGHT:

25

THERMAL PROTECTION:

AUTOMATIC RESET

 872 3/4HP PUMP MOTOR (HIGH CAPACITY PUMP MOTOR (USED IN RO LINE)

Read More

Soft Drink Industry

Water Purification

Additional Information

NESPL Code NSSP000539
Manufacturer Code S055PNA7672012J
HSN Code 85014090
Weight 11.5kg
Type Pump / Motor
