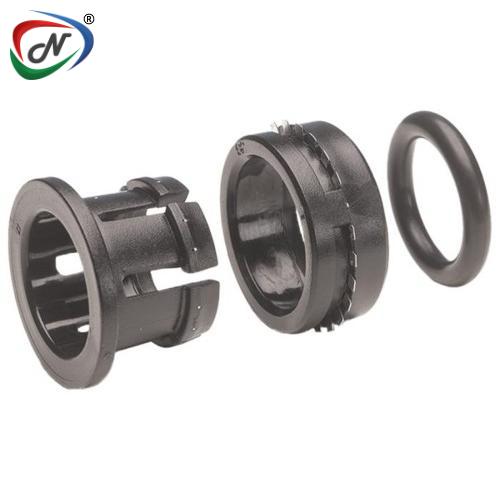

PCM2808E 8 MM BLACK ACETAL COLLET, BLACK ACETAL BODY, EPDM ‘O’ RING
#NSSP008451
Product Description
PCM2808E 8 MM BLACK ACETAL COLLET, BLACK ACETAL BODY, EPDM
‘O’ RING
Black Acetal Collet, Black Acetal Body, Nitrile ‘O’ Ring.
With JG Cartridge Systems, OEM equipment can be easily
integrated with a push-fit connection.
Compact and easy to gather, push-in connections
eliminate threaded ports, improve product appearance, allow tube
connection easily and result in a smaller envelope. A metal half cartridge
is made up of three parts: a collar, a brass body, and an O-ring. It is
recommended that metal half cartridges only be used with soft metal housing
materials. Easy and quick tubing connections are made possible by JG
Push-fit technology.
It is the customer's responsibility to make
sure cartridges are suitable for their applications, housing
materials, as well as operating conditions.
Main Features:
- Compatible
with plastic or copper OD sized tubing.
- Leak-free,
High-Quality Food Grade Materials.
- Easy
to connect/disconnect.
- Less
Assembly efforts
- Certified
by NSF 51 and NSF 61.
- Original
Equipment Manufacturers are deliberately use these Half Cartridges.
Working pressure and temperature:
Sizes 5/32-5/16 in. (4 – 8 mm.)
- Max.
230 psi at 68° F
- Max.
150 psi at 150° F
Sizes 3/8-1/2 in. (10 – 12 mm.)
- Max.
150 psi at 68° F
- Max.
100 psi at 150° F
|
1 ‘O’ RING PART NO |
TUBE OD |
2 ‘O’ RING PART NO |
TUBE OD |
|
PM2804E |
4mm |
PM2805E2 |
5mm |
|
PM2805E |
5mm |
PM2806E2 |
6mm |
|
PM2806E |
6mm |
PM2808E2 |
8mm |
|
PM2808E |
8mm |
PM2810E2 |
10mm |
|
PM2810E |
10mm |
|
|
|
PM2812E |
12mm |
|
|
|
PM2815E |
15mm |
|
|
Various Industry Products
Additional Information
| NESPL Code | NSSP008451 |
| Manufacturer Code | PCM2808E |
| Manufacturer | John Guest |
| Type | Parts / Accessories |
