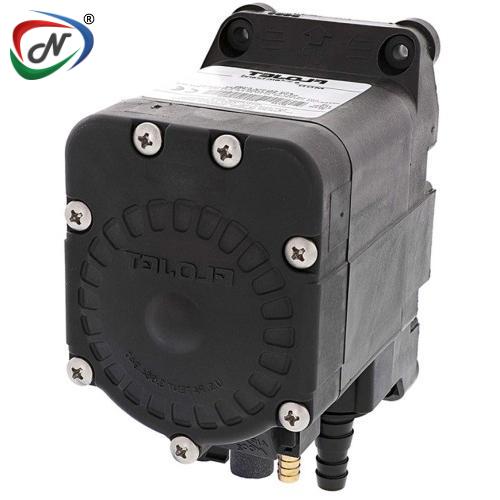

Flojet G57-5005A Diaphragm Pump AOD Air Powered

Flojet G57-5005A Diaphragm Pump AOD Air Powered

Santoprene Diaphragm and Valves, EPDM 'O' Ring

- Air or CO2 drive pressures of up to 100PSI (6.9bar) can be handled by this device.

- It offers the highest flow rate among air pumps of similar size.

- The design is robust and includes a durable integral mounting.

- Stalling is eliminated thanks to the patented Shuttle Valve.

- It can easily pass solids up to 3.2mm in diameter with its large clog-free Check Valves.

- The materials used are corrosion resistant and can handle a wide range of chemicals.

- The sanitary design includes an insert molded diaphragm (Santroprene only).

- Radial seals are leak resistant, eliminating the need for critical o-ring seals.

- The operation is quiet, thanks to the large exhaust muffler.

- Installation is easy with all quick disconnect ports.

- The design is stall-proof, thanks to the patented shuttle valve.

Main Features:

• Flojet- Diaphragm Pump AOD Air Powered,
• no Snap-In Port Fittings,
• 7.0GPM Max with 3/4” Port Fittings,
• Polypropylene,
• Santoprene Check Valve Seat and Diaphragm,
• 1/4” Hose Barb Straight Brass Air Inlet

• Connections: - No ports adapters supplied - Air, 6mm (1/4") hose
• Dimensions: - 116mm long, 82mm wide, 115mm high
• Output: - up to 26.5 litres/minute (5.9 gallons/minute). Maximum pressure 6.9bar (100psi)
• Capable of passing solids up to 3.2mm diameter
• Corrosion Resistant Sanitary Design
• Self-priming up to 4.5m
• Pump can run-dry and handle liquids up to 49ºC (120ºF)
• Max. Air Supply Pressure 6.9bar (100psi)
• Packaged Dimensions: L:15.00 x H:15.00 x W:12.00cm
• Actual Weight: 0.67 Kg  (Approx. 0.92 Kg packed)

*The details supplied here are for information only.
