SHURFLO BRIX PUMP 5:1 10BEP (8) # 94-260-05
#NSSP008494
Product Description
SHURFLO BRIX PUMP 5:1 10BEP (8) # 94-260-05

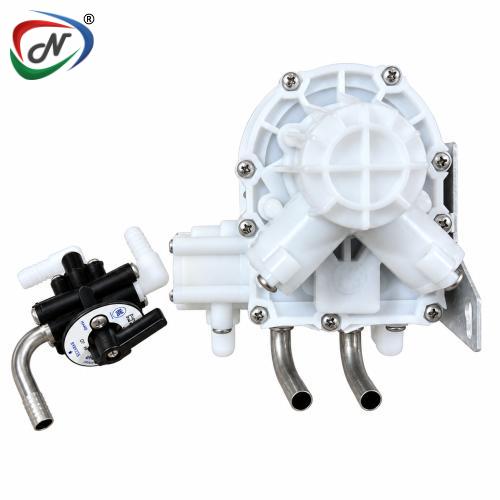

SHURFLO 94-260-05 BRIX Pump – 5:1 Beverage Proportioning Pump
The SHURFLO
94-260-05 BRIX Pump proportions water and beverage concentrate at a 5:1
water-to-concentrate ratio for post-mix dispensing. It is suitable for
compatible juice and flavored syrup systems requiring consistent beverage
dilution. Pentair identifies this model as the white 5:1 version.
The pump
uses incoming water pressure to drive the proportioning process, eliminating
the need for a separate electrical or CO₂ supply to operate the pump. Its
design maintains the proportioning ratio as system flow and pressure change
within the specified operating conditions.
Main Features:
- 5:1 proportioning ratio: Delivers five parts water to
one part concentrate.
- Water-pressure-driven
operation:
Requires no separate electric motor or CO₂ drive.
- Automatic vacuum shutoff: Built-in shutoff feature.
- Sanitizing provision: Catalogue configuration
incorporates a three-way sanitizing valve.
- Mounting bracket: Included in the catalogue
configuration.
Main Specifications:
|
Parameter |
Details |
|
Brand |
SHURFLO / Pentair |
|
Part number |
94-260-05 |
|
Product type |
BRIX beverage proportioning pump |
|
Proportioning ratio |
5:1 — water to concentrate |
|
Colour designation |
White |
|
Drive source |
Pressurized incoming water |
|
Maximum water inlet pressure |
50 PSI / approximately 3.45 bar |
|
Concentrate inlet and
outlet |
3/8" white Celcon elbow hose
barbs |
|
Water inlet and outlet |
3/8" stainless steel elbow hose barbs |
|
Automatic shutoff |
Built-in vacuum shutoff |
|
|
Main Applications:
- Post-mix juice dispensing
systems.
- Flavoured syrup beverage
dispensers.
- Commercial beverage
proportioning installations.
- Replacement in equipment specifying SHURFLO 94-260-05.
Soft Drink Industry
Additional Information
| NESPL Code | NSSP008494 |
| Manufacturer Code | 94-260-05 |
| HSN Code | 84137099 |
| Manufacturer | SHURFLO-PENTAIR-MANITOWOC ICE |
| Weight | 1.074 |
| Type | Pump |
