Lefoo DC Motor Peristaltic Pump LFP101A/DB

#NESPLLF009

Product Description

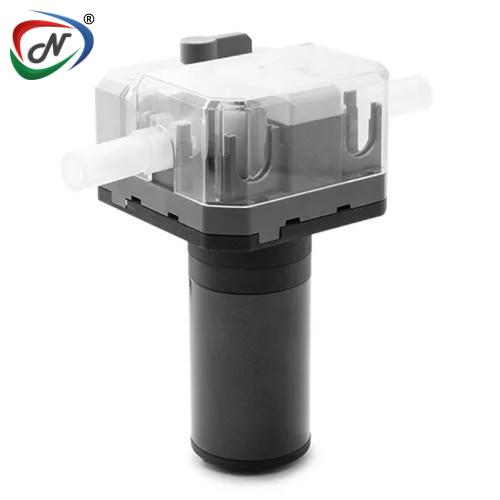

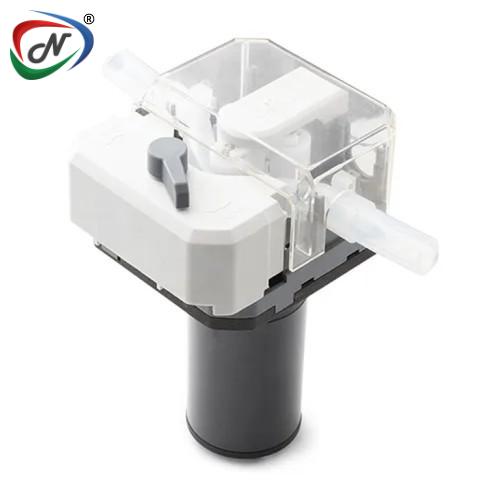

Lefoo DC Motor Peristaltic Pump LFP101A/DB (Flow range: 0-2ml/min)

The LEFOO LFP501DB.G High Precision DC Peristaltic Pump represents a sophisticated solution engineered for precise and dependable liquid conveyance and metering operations. Operating within a flow capacity range of 950 to 2600 ml/min and compatible with both 12V DC and 24V DC power supplies, this self-priming peristaltic pump provides steady and uniform performance across continuous fluid management systems.

Equipped with a waterproof pump head, a completely removable pump head facilitating straightforward tubing replacement, quiet operational characteristics, and precisely adjustable pressure mechanisms to eliminate dripping, the LFP501DB guarantees uncontaminated fluid transfer with reduced maintenance requirements. This apparatus proves exceptionally suitable for water treatment installations, chemical metering systems, hydroponic cultivation nutrient delivery, food manufacturing equipment, textile dyeing apparatus, and industrial process automation applications.

Specification of LEFOO LFP501DB High Precision DC Peristaltic Pump

Main Specifications:

Model	Installation Method	Motor Type	Control Method	Function	Working Voltage	Power	Weight	Working Environment	Rollers
P501DB. G	Built-in mounting hole	High-precision motor	Power-on operation	Fixed flow rate	DC24V	$\le$24W	825g	Temperature 0-45℃, Relative Humidity <85%RH	Standard with 3 rollers

FLOW STANDARD(ML/MIN)

Voltage	Flow Range	Tube Size	Tube Type
DC12V, DC24V	950～1500	26#	BPT Tube/Silicone Tube/A60-F/Viton Tube
DC12V, DC24V	1450～2100	35#	BPT Tube/Silicone Tube/A60-F/Viton Tube
DC12V, DC24V	1700～2600	36#	BPT Tube/Silicone Tube/A60-F/Viton Tube
