StepLess® Ear Clamps PEX Series 167
#CLAMPOET15
Product Description

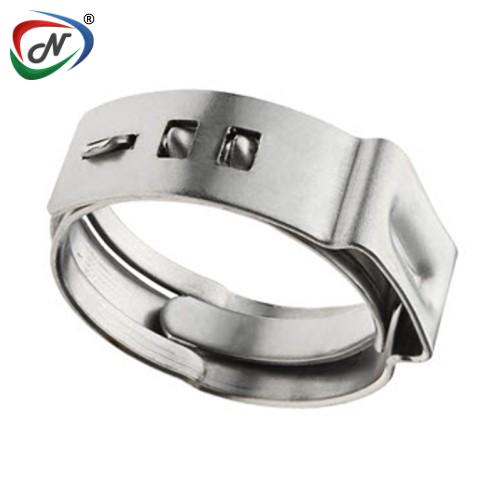

StepLess® Ear Clamps PEX Series 167
- 360° StepLess®: provides consistent 360° compression and
even surface pressure.
- PEX plumbing connection: enables quick and reliable
installation.
- Standard ear size: a single installation tool accommodates
all clamp sizes.
- Design: features tamper-evident properties.
Material
- 167 Stainless
Steel, material no. 1.4301/UNS S30400
Standard Series
|
PEX tube |
clamp size |
width x thickness |
|
3/8" |
13.3 mm |
7.0 x 0.6 mm |
|
1/2" |
17.5 mm |
7.0 x 0.8 mm |
|
5/8" |
20.8 mm |
7.0 x 0.8 mm |
|
3/4" |
23.3 mm |
9.0 x 0.8 mm |
|
1" |
29.6 mm |
10.0 x 1.0 mm |
PEXGrip® Series
|
PEX tube |
diameter range |
width x thickness |
|
1/2" |
17.5 mm |
7.0 x 0.8 mm |
|
3/4" |
23.3 mm |
9.0 x 0.8 mm |
|
1" |
29.6 mm |
10.0 x 1.0 mm |
PEXGrip®:
The PEXGrip® patented series is pre-set to prevent the clamp from
sliding. It grips the tube for easy installation.
NSF Product listing:
Complies with NSF product listing cNSFus-PW.
ASTM F2098 Standard:
Complies with ASTM F2098 Stainless Steel clamps for use with ASTM F1807 or
F2159 insert fittings and ASTM F876 PEX tubing.
Warning:
- In high chloride water conditions, use only plastic fittings.
- Do not install in contact with concrete.
- Use only ASTM F1807 or F2159 Insert Fittings with Oetiker Clamps.
Click to download : Oetiker_PEX-Clamp-167_Installation-Manual_Tool-Calibration Click to download : Oetiker_Plumbing_BrochureVarious Industry Products
Additional Information
| NESPL Code | CLAMPOET15 |
| Manufacturer Code | 167 |
| Manufacturer | Oetiker |
| Type | Clamps |
