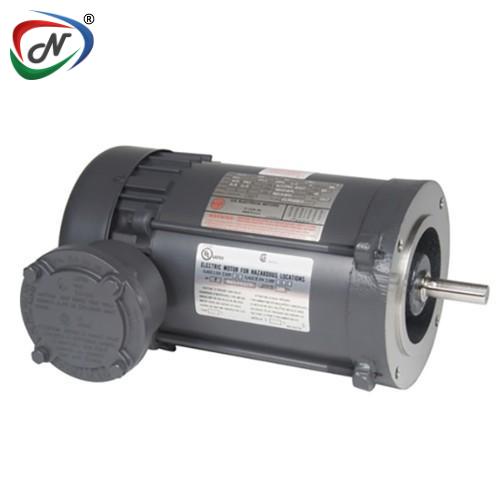

XS12CA2JCR - 0.5 HP - TEFC - 1725 RPM MOTOR

XS12CA2JCR - 0.5 HP - TEFC - 1725 RPM MOTOR MODEL: CH63ABK1031015B

Nidec XS12CA2JCR - The General-Purpose Single Phase-1

• Hazardous Location motors are specifically engineered for industrial applications situated in hazardous environments.
• These motors are appropriate for use in Class I (Group C&D) and Class II (Group E, F, & G) hazardous settings.
• They hold UL Listing and CSA Certification, which guarantees adherence to safety regulations.
• Featuring a temperature code of T3C and Class B insulation, these motors are constructed to withstand the heat produced in hazardous locations.
• They are designed for continuous duty and possess a totally enclosed fan cooled structure, unless otherwise specified.
• The motors are rated for a 40°C ambient temperature and include F1 assembly for ease of installation.
• Fitted with an automatic reset thermal protector overload, they safeguard against overloading.
• These motors are perfectly suited for air compressors, pumps, conveyors, blowers, and general industrial machinery functioning in hazardous areas, delivering dependable performance and safety.

Main Features:

• General Purpose
• Hazardous Location
• Hazardous Location
• Class I (Group C & D) Class II (Group E F & G)
• C Face Footless

Technical Specifications

• Model:  XS12CA2JCR
• Brand: US Motors (Nidec)
• Product Condition: New
• Motor Type: General Purpose
• Horsepower Rating: 0.5 HP
• Synchronous RPM: 1800 RPM
• Rated RPM: 1725 RPM
• Frame Size: 56C
• Rated Supply Voltage: 115/208-230 V
• Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Full Load Torque: 24.38
• Rated Voltage: 230 V, 115 V
• Phase: Single Phase
• Service Factor: 1
• Insulation Class: B
• Duty Cycle: Continuous
• Efficiency: 62.9%
• C Dimension: 13.7
• Bearing Type: 6203
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 9.8/4.9-4.9 A
