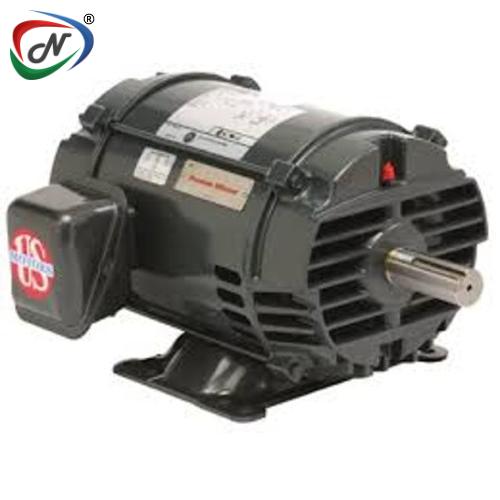

Fire Pump Motor
#NIDECNESPL09
Product Description
Fire Pump Motor
Main Applications:
For fire pump applications per NFPA®† 20 where contaminants
are minimal.
Main Features:
- Class F Insulation, Class B Rise At Service Factor.
- Rolled Steel Frame 250-360, Cast Iron Frame 400-440.
- Aluminum End Shields 250, Cast Iron End Shields 280-440.
- Premasked Mylar Nameplate 250-320, Stainless Steel 360-440
Frame.
- 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine
Wave Power.
- Regreasable Bearings 180 Frame & Larger.
- Double Shielded Bearings 250-400, Open On 440 Frame.
- Lifting Provisions 210 Frame & Larger Suitable For
Wye-Delta Start 250 Frame & Larger.
- Dual Voltage Ratings Suitable For Part Winding Start (PWS)
On Low Voltage.
- 230/460 & 575 Volt Ratings Comply With NRCan Standards.
- 230/460 Volt Ratings Dual Plated for either 190/380 Volt or
200/400 Volt 50 Hertz, Next Lower Horsepower.
- Oversized Connection Diagram.
- 208v will not be marked on DOE regulated spread-voltage motors.
Main Specifications:
- Three Phase, ODP
- 3– 500 HP
- 3600 and 1800 RPM
- 184– 5012 Frame
- UL®† listed for fire pump application
- Available in horizontal frame and vertical JP close couple
pumps
Click to download : PUMP-Firepump-ODP-FootedVarious Industry Products
Additional Information
| NESPL Code | NIDECNESPL09 |
| Manufacturer | Nidec |
| Type | Motors |
