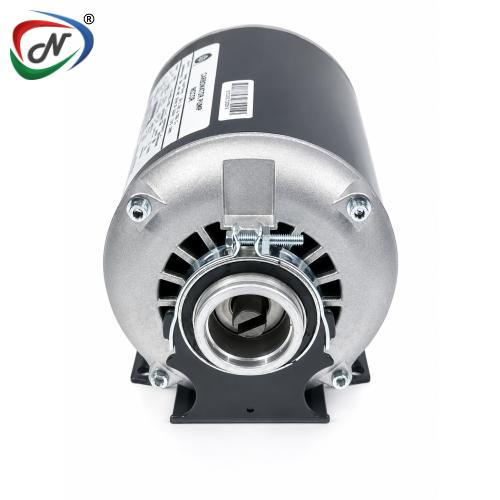

NIDEC MOTOR -Carbonator Pump Motor 1/3 hp 115-220V -50/60hz
#NSSP000001
Product Description
NIDEC MOTOR -Carbonator Pump Motor 1/3 hp 115-220V -50/60hz
S055NSR7299022J NIDEC MOTOR
MAIN APPLICATION:
DESIGNED END SHIELD WITH EXTENDED HUB AND SHORT SLOTTED SHAFT FOR CLOSE COUPLING CARBONATOR PUMP TO MOTOR.
MAIN FEATURES:
- FOR CARBONATOR DUTY ONLY
- REVERSIBLE ROTATION
- AUTOMATIC RESET THERMAL OVERLOAD PROTECTOR
- THREADED CONDUIT HUB
- ALL BALL BEARING CONSTRUCTION
- GREEN GROUND LEAD
- SPECIAL SLOTTED SHAFT
MAIN
SPECIFICATIONS:
|
Model_Number: |
S055NSR7299022J |
|
PRODUCT NAME: |
.33 HP - ODP - 1725 |
|
PHASETYPE: |
1_SPLIT
PHASE |
|
MOTOR ENCLOSURE: |
ODP |
|
HORSEPOWER: |
.33 |
|
KILOWATTS: |
0.3 |
|
POLES: |
4 |
|
NUMBER SPEEDS: |
1 |
|
RPM: |
1725 |
|
HERTZ: |
50 |
|
HERTZ 2: |
60 |
|
VOLTS PRIMARY: |
100-120 & 200-240 V |
|
VOLTS : |
100 |
|
VOLTS 2: |
120 |
|
VOLTS 3: |
200 |
|
VOLTS 4: |
240 |
|
FRME : |
48 |
|
STATOR DIAMETER: |
5.5 |
|
STACK: |
1.5 |
|
MOUNTING: |
RESILIENT |
|
MOTOR TYPE: |
FHP |
|
OPPOSITE END BEARING: |
BALL |
|
SHAFT END BEARING: |
BALL |
|
AMBIENT: |
40 |
|
ROTATION: |
CW DRIVE
END REV |
|
SERVICE FACTOR: |
1 |
|
THERMAL PROTECTION: |
AUTOMATIC
RESET |
Note: Image is just for ref.
Dimensions are for reference only unless tolerance is given.
Click to download : MODELS055NSR7299022J -NIDEC MOTOR Click to download : NIDEC MOTOR 6079 tech spec sheet 2023.pdfSoft Drink Industry
Additional Information
| NESPL Code | NSSP000001 |
| Manufacturer Code | S055NSR7299022J |
| HSN Code | 85014000 |
| Manufacturer | Nidec |
| Voltage | 115-220V -50/60Hz |
| Model | NIDEC MOTOR |
| Power | .33 HP |
| Weight | 6.900 Kg |
| Type | Motors |
