9mm Band Worm Gear Stainless Steel 8-12mm

#NCLMX14

Product Description

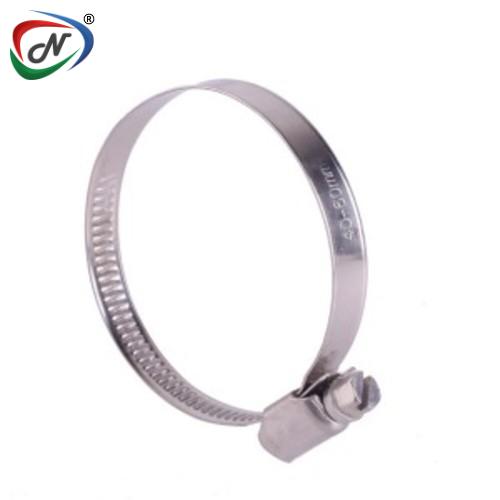

9mm Band Worm Gear Stainless Steel 8-12mm

German Type  Hose Clamp  consist of a band, often galvanized or stainless steel, into which a screw thread pattern has been cut or pressed.One end of the band contains a captive screw. The clamp is put around the hose or tube to be connected, with the loose end being fed into a narrow space between the band and the captive screw. When the screw is turned, it acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite direction, to loosen). Screw clamps are normally used for hoses 1/2 inch diameter and up, with other clamps used for smaller hoses.

TIGHTENING TORQUE:

  • German type hose clamp recommended installation free torque is less than 1Nm,load torque is 6.5Nm.

MAIN APPLICATIONS:

German type hose clamp is widely used in automobiles, tractors, forklifts, locomotives, ships, mines  petroleum,chemicals,pharmaceuticals,agricultures and other water,oil,steam,dust etc

You can see some usage scenario in below picture.

MAIN FEATURES:

  • Easy to Operate
  • Sturdy Lock
  • Pressure Resistance
  • Torque Balanced
  • Big Adjustable Range



Read More

Beer Industry

Soft Drink Industry

Various Industry Products

Additional Information

NESPL Code NCLMX14
Manufacturer Code NCLMX14
Manufacturer NESPL Clamps and Clamping Tools
Type Clamps
