12210110057 Fan Spray Nozzles

#NESPLNOZZLE-TF1

Product Description

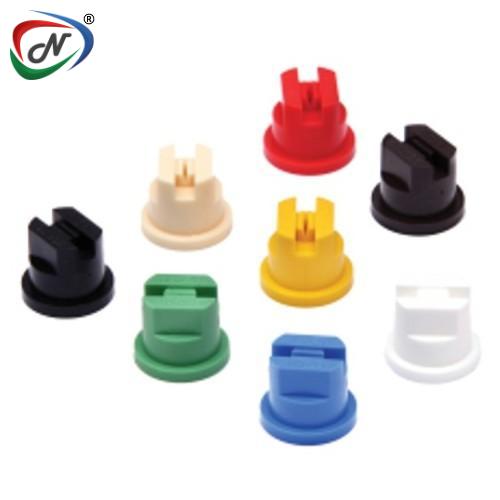

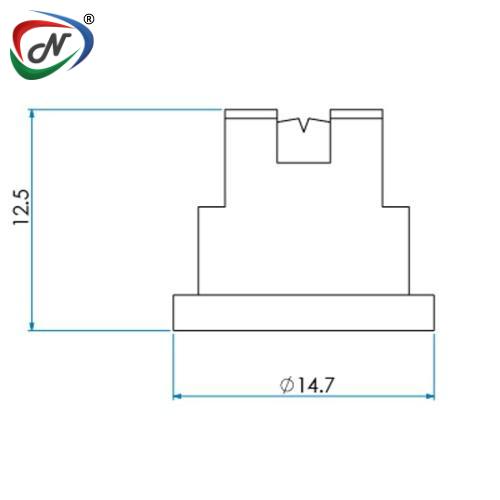

12210110057 Fan Spray Nozzles

The Tefen 12210110057 fan spray nozzle is a precision-molded plastic nozzle designed for efficient liquid distribution. Made from durable acetal and color-coded green, it delivers a wide 110° spray angle, ideal for misting, cooling, and agricultural applications. Operating at 2–6 bar, it provides a consistent flow rate ranging from 0.296 to 0.513 L/min. Its robust design resists chemicals and wear, making it a reliable choice for consistent and uniform spray coverage in industrial or horticultural settings.

Main Features:

110° Fan Spray Pattern – Delivers a straight, wide-angle flat fan spray ideal for uniform coverage in applications like misting, cooling, and humidification.

Flow Rate by Pressure – Provides approximately 0.296L/min at 2bar, 0.362L/min at 3bar, 0.417L/min at 4bar, and 0.513L/min at 6bar.

Durable Acetal Construction – Made from robust plastic (acetal), offering chemical resistance and long-term durability.

Green Color-Coded Identifier – Easily distinguishable from other nozzle types through its green color coding.

Cost-Effective and Versatile – Offers high performance at a relatively low cost and is suited to a range of uses, including greenhouse irrigation, poultry cooling, food display humidity control, and various industrial applications.
