Union Elbow swivel Connector
#NESPLTEFEN4
Product Description

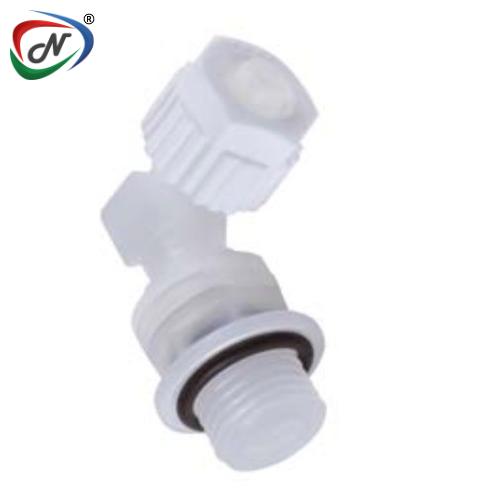

Union Elbow swivel Connector
A Union Elbow Swivel Connector is a 90-degree hose or tube
fitting designed to join two fluid lines at an angle while allowing rotational
movement. Its swivel feature enables easy alignment and installation without
twisting the hose. Typically made from durable, chemical-resistant materials
like nylon or polypropylene, it ensures a leak-proof, flexible connection.
Commonly used in pneumatic, hydraulic, and water systems, this connector
simplifies maintenance and reduces stress on tubing in tight or angled configurations.
Main Features:
- 90-Degree
Elbow Design – Connects tubing at a right angle to save space and fit
into tight layouts.
- Swivel
Functionality – Allows rotation during installation for easy hose
alignment without twisting.
- Leak-Proof
Union Connection – Secure, threaded design ensures tight, reliable
sealing.
- Durable
Materials – Made from chemically resistant plastics like nylon or
polypropylene.
- Versatile Applications – Used in fluid, air, and water systems for industrial, agricultural, or lab setups.

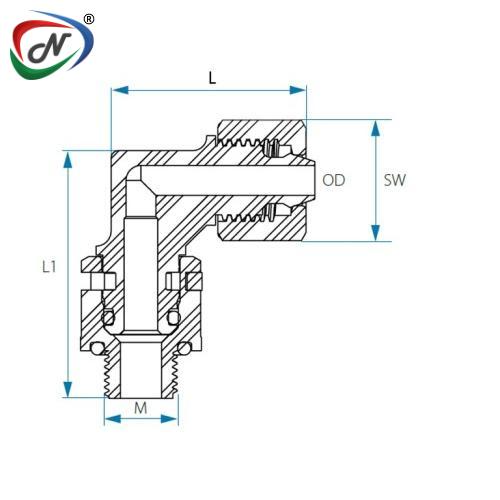

Main Specifications:
|
Cat. No. |
Tube OD mm |
M BSPP |
L mm |
L1 |
SW |
O-ring |
Color |
|
22566948021 |
8 |
1/8" |
27.3 |
33.2 |
16 |
Viton |
White |
|
22566948041 |
8 |
1/4" |
27.3 |
33.2 |
16 |
Viton |
|
|
Cat. No. |
Tube OD mm |
M BSPP |
L mm |
L1 |
SW |
O-ring |
Color |
|
22566904021 |
8 |
1/4" |
27.3 |
33.2 |
16 |
Viton |
White &
Navy Blue |
Various Industry Products
Additional Information
| NESPL Code | NESPLTEFEN4 |
| Manufacturer Code | 22566948021 |
| Type | Fittings |
