Male NPT Barb Block Connector

#NESPLTEFEN7

Product Description

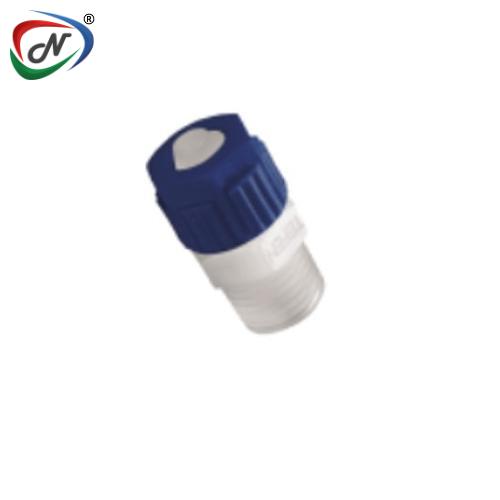

Male NPT Barb Block Connector

A Male NPT Barb Block Connector is a versatile fitting that connects flexible tubing to a female NPT threaded port. One end features a barbed design for a secure grip on soft hoses, while the other end has a tapered male NPT thread to ensure a leak-tight seal when tightened. Commonly made from durable, chemical-resistant materials like nylon or polypropylene, it is widely used in fluid, air, and chemical handling systems for reliable, high-performance connections.

Main Features:

Dual Connection Ends – Barbed end for flexible tubing and male NPT thread for pipe or equipment ports.

NPT Tapered Thread – Ensures a tight, leak-resistant seal in threaded connections.

Secure Hose Grip – Barbed design provides firm, reliable attachment to soft tubing.

Durable Construction – Made from tough, chemical-resistant materials like polypropylene or nylon.

Wide Application – Suitable for air, water, fluid, and chemical systems in industrial and agricultural settings.

Main Specifications:

Cat. No.	Tube OD inch	M (NPT)	L mm	SW	Color
22256804021	1/4"	1/8"	29.4	13	White & Grey
22256804041	1/4"	1/4"	34.0	15
22256804061	1/4"	3/8"	35.1	18
22256804081	1/4"	1/2"	40.2	22
22256804121	1/4"	3/4"	41.0	27
22256805021	5/16"	1/8"	29.4	13
22256805041	5/16"	1/4"	34.0	15
