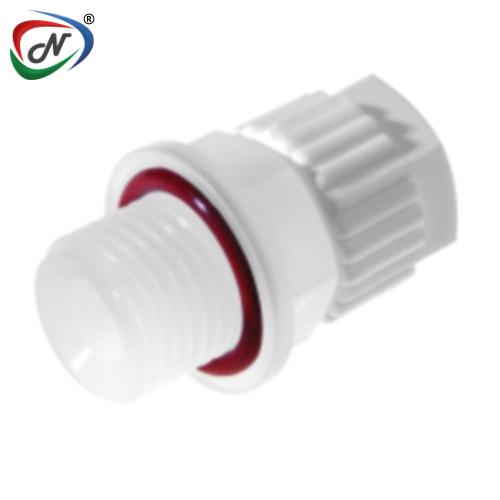

Male Barb Block Connector (with O-Ring)

#NESPLTEFEN1

Product Description

Male Barb Block Connector (with O-Ring)

The Male Barb Block Connector (with O-Ring) by Tefen is a durable and reliable fluid connection solution designed for secure, leak-free performance. Featuring a precision-engineered male barb and integrated O-ring, it ensures tight sealing in pneumatic and fluid systems. Ideal for industrial and commercial applications, this connector offers easy installation, corrosion resistance, and long-lasting durability. Its robust design supports consistent flow and prevents leaks, making it perfect for demanding environments requiring dependable and efficient fluid management.

Main Features:

· Leak-Proof Design: Integrated O-ring ensures a secure, tight seal.

Durable Construction: Made from high-quality materials for long-lasting performance.

Easy Installation: Simple push-fit connection for fast and hassle-free assembly.

Corrosion Resistant: Suitable for various industrial and commercial environments.

Reliable Performance: Maintains consistent fluid flow under pressure.

Versatile Use: Compatible with a wide range of tubing and piping systems.

Compact Design: Saves space while providing strong connectivity.

Main Specifications:

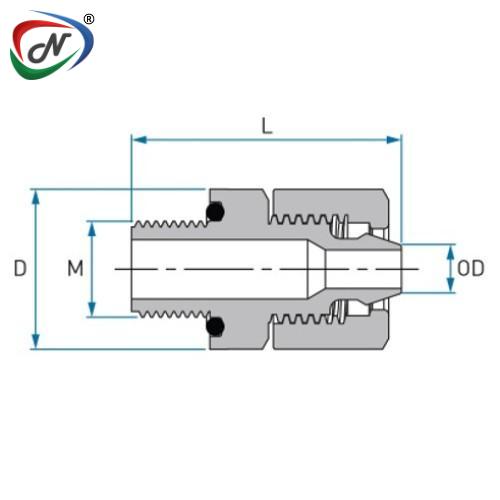

Cat. No.	Tube OD mm	M (BSPP)	L mm	D mm	Color	O-ring
22F56846021	6	1/8''	27.2	16.0
22F56846041	6	1/4''	30.9	19.4
22F56848021	8	1/8''	27.3	16.0	White	Silicone
22F56848041	8	1/4''	31.1	19.3
22F56850021	10	1/8''	27.2	16.0
22F56850041	10	1/4''	31.0	19.4
