Female NPT Barb Block Connector

#NESPLTEFEN9

Product Description

Female NPT Barb Block Connector

A Female NPT Barb Block Connector is a type of plumbing or pneumatic fitting designed to connect flexible tubing to a threaded pipe or fitting. It features a female NPT threaded port on one side and a barbed fitting on the other side, allowing for secure attachment to flexible hoses or tubing.

Main Features:

Female NPT Thread: Designed to mate with a male NPT threaded pipe or fitting, providing a leak-resistant connection.

Barb End: The barb allows flexible tubing or hose to be pushed on securely; the ridges grip the inside of the hose to prevent slipping.

Block Connector Style: Typically, a block shape for easy handling and secure mounting, sometimes allowing multiple connections or integration into a manifold.

Materials: Commonly made from brass, stainless steel, plastic (like nylon or polypropylene), or aluminum depending on the application.

Applications: Used in fluid transfer systems, pneumatic lines, irrigation systems, automotive fuel or vacuum lines, and various industrial setups.

Main Specifications:

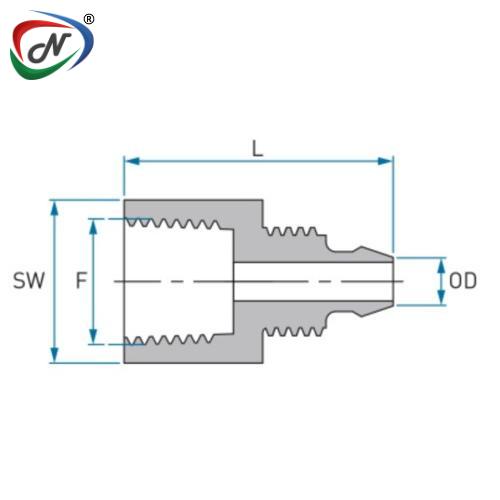

Cat. No.	Tube OD inch	F (NPT)	L mm	SW	Color
22256605061	5/16"	3/8"	33.8	14	White & Grey
22256605081	5/16"	1/2"	37.3	14
22256606041	3/8"	1/4"	32.9	17
22256606061	3/8"	3/8"	34.5	17
22256606081	3/8"	1/2"	38.0	17
