Female BSPT Barb Block Connector

#NESPLTEFEN8

Product Description

Female BSPT Barb Block Connector

The Female BSPT Barb Block Connector is a versatile plumbing fitting designed to provide a secure, leak-resistant connection between BSPT-threaded components and flexible tubing or hose. Featuring a BSPT female threaded end, this connector easily mates with male BSPT fittings or pipes, while the opposite end is equipped with a barbed design to grip flexible tubing firmly.

Main Features:

Female BSPT Thread – Provides a secure, tapered pipe thread connection for leak-free sealing.

Barbed End – Ensures a firm grip on flexible hoses or tubing, preventing slippage.

Compact Block Design – Ideal for tight spaces or manifold setups, allowing multiple connections.

Durable Material Options – Available in brass, stainless steel, or plastic for corrosion resistance and longevity.

Easy Installation – Compatible with standard BSPT tools; hose clamps recommended for added security.

Main Specifications:

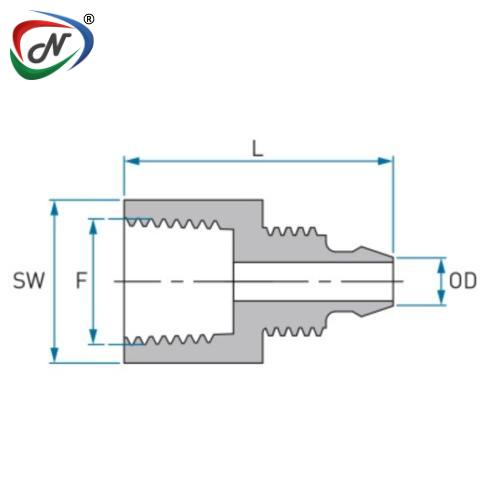

Cat. No.	Tube OD mm	F (BSPT)	L mm	SW	Color
22056646021	6	1/8"	26.3	14	White/ White & Navy Blue
22056646041	6	1/4"	27.8	17
22056648021	8	1/8"	26.3	14
22056648041	8	1/4"	28.0	17
22056648061	8	3/8"	30.6	22
22056648081	8	1/2"	32.5	26
22056650041	10	1/4"	31.7	17
22056650061	10	3/8"	33.0	22
22056650081	10	1/2"	35.1	26
