22056952041 BSPT Male Elbow Barb Block Connector

#NESPLTEFEN10

Product Description

22056952041 BSPT Male Elbow Barb Block Connector

A BSPT Male Elbow Barb Block Connector is a plumbing or pneumatic fitting designed to connect flexible tubing to a system with a male BSPT threaded pipe connection, changing the flow direction by 90 degrees.

Main Features:

BSPT Male Thread – Tapered male thread ensures a secure, leak-resistant connection with female BSPT fittings.
90-Degree Elbow Design – Allows for directional change of fluid or air flow in tight or confined spaces.
Barbed Hose Connection – Provides a strong grip on flexible tubing or hoses to prevent slippage and leaks.
Block Shape – Compact and easy to mount or integrate into manifold systems.
Durable Materials – Made from corrosion-resistant materials like brass, stainless steel, or plastic for long-lasting performance.

Main Specifications:

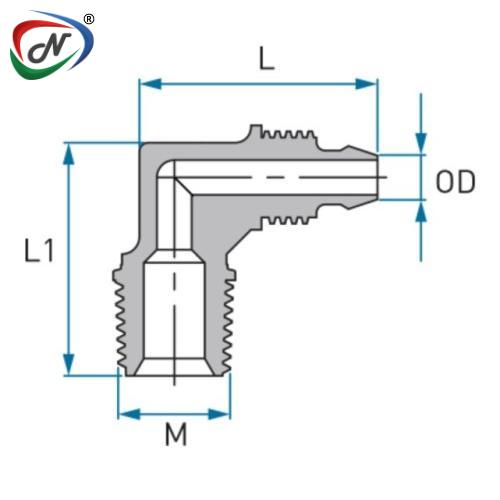

Cat. No.	Tube OD mm	M (BSPT)	L mm	L1 mm	Color
22056946021	6	1/8"	27.6	22.4	White
22056946041	6	1/4"	27.6	26.8
22056948021	8	1/8"	27.6	26.8
22056948041	8	1/4"	27.6	26.8
22056948061	8	3/8"	28.1	29.4
22056952041	12	1/4"	40.3	31.7
22056952061	12	3/8"	40.3	32.0
22056952081	12	1/2"	40.3	36.0
