22257208021 NPT Male Barb Block Run T
This part is a T-shaped barb-block fitting with a ½ tube outer-diameter barb and a 1/8 male NPT thread. It’s manufactured in PVDF material for high chemical and thermal resistance. The working pressure is up to 14 bar (200 psi) at 20 °C, and it supports temperatures from -20 °C to +120 °C. Ideal for branching fluid lines in harsh environments.
Main Features:
Material: Made from PVDF for excellent resistance to chemicals and high temperatures.
Connection Type: Features ½ barb connections with a 1/8 male NPT threaded port.
Design: T-shaped run configuration for efficient fluid line branching.
Pressure Rating: Supports up to 14 bar (200 psi) at 20 °C for durable performance.
Temperature Range: Operates effectively between –20 °C and +120 °C.
Specifications:
Unit type | Imperial |
Material | PVDF |
Thread Type | NPT |
Color | White & Grey |
Temperature Range | -20°C up to +120°C |
Working Pressure | Up to 14 bar (200 psi) at +20° C |

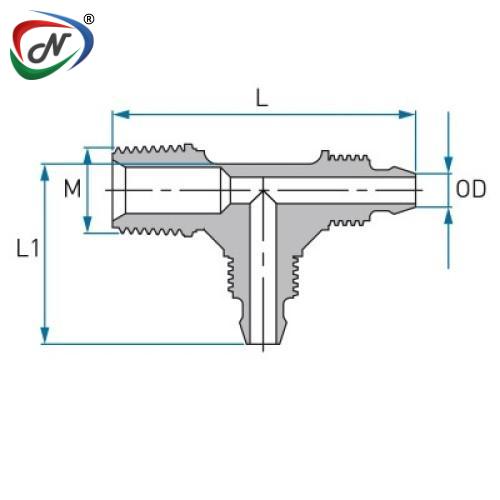

D | 21.5 mm |
d small | 12 mm |
Carton Quantity | 250Main |
L mm | 48 |
L1 mm | 43.2 |
Tube OD inch | 1/2 |
M NPT | 1/8 |
Various Industry Products
| NESPL Code | NESPLTEFEN18 |
| Manufacturer Code | 22257208021 |
| Manufacturer | TEFEN |
| Type | Fittings |
