22256905021 NPT Male Elbow Barb Block Connector

#NESPLTEFEN16

Product Description

22256905021 NPT Male Elbow Barb Block Connector

Hydraulic systems. Designed for compatibility with a wide range of highly corrosive fluids, including acids, weak bases, halogens, alcohols, salts, heavy-duty oxidants, detergents, and more. Resistant to UV radiation and nuclear conditions.

The Tefen 22256905021 is a high-quality NPT Male Elbow Barb Block Connector made from durable PVDF. It features a 5/16 tube outer diameter barb and a 1/8 male NPT thread, designed for secure, leak-free fluid connections. Resistant to chemicals, heat, and pressure up to 14 bar at 20 °C, it operates from –20 °C to +120 °C. Ideal for industrial, chemical, and fluid systems, it ensures reliable performance and easy installation in demanding environments.

Main Features:

Material: Made from PVDF for excellent chemical and thermal resistance.

Connection Type: 5/16 barb × 1/8 male NPT for secure tubing and threaded connections.

Pressure Rating: Withstands up to 14 bar (200 psi) at 20 °C.

Temperature Range: Operates efficiently from –20 °C to +120 °C.

Design: Compact 90° elbow shape for space-saving, leak-free fluid routing.

Main Specifications:

Unit type	Imperial
Material	PVDF
Thread Type	NPT
Color	White & Grey
Temperature Range	-20°C up to +120°C
Working Pressure	Up to 14 bar (200 psi) at +20° C

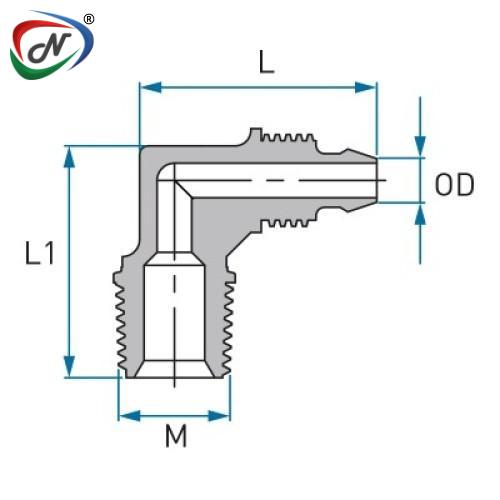

D	16 mm
C	12.5 mm
d small	7.2 mm
Carton Quantity	400
L mm	24
L1 mm	27.5
Tube OD inch	5/16
b small	23.5
M NPT	1/8
