22246808123 NPT Male Connector

#NESPLTEFEN39

Product Description

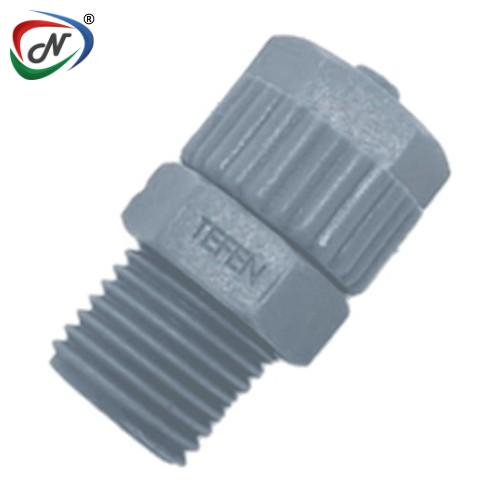

The 22246808123 NPT Male Connector by Tefen is a high-quality fitting designed to connect pipes or hoses with NPT (National Pipe Thread) female connections. Made from acetal, it provides excellent durability and chemical resistance. These connectors are ideal for pneumatic, hydraulic, or fluid transfer systems where secure, leak-proof connections are essential. The male NPT threads ensure a tight, reliable seal, often used in high-pressure and high-flow systems.

Main Features:

NPT male threads for secure, leak-resistant connections.
Durable construction — typically made from acetal or stainless steel for long-lasting performance.
Designed for high-pressure systems — rated for industrial use in hydraulic and pneumatic systems.
Chemical resistance — handles a wide range of fluids and gases.
Versatile — suitable for various applications, including fluid transfer, machinery, and equipment maintenance.

Main Specifications:

Unit type	Imperial
Material	Reinforced Polypropylene
Thread Type	NPT
Color	Grey
Temperature Range	+4° C up to +90° C (+40° F up to +195° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C

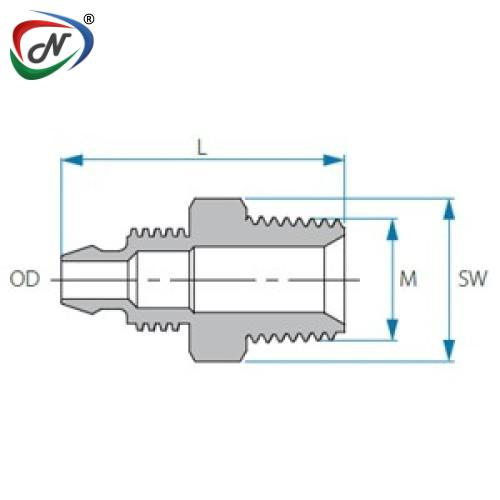

D	21.5 mm
d small	12 mm
L mm	45.7
SW mm	27
Tube OD inch	1/2
M NPT	3/4
