22057305041 BSPT Female Branch Barb Block Connector

#NESPLTEFEN17

Product Description

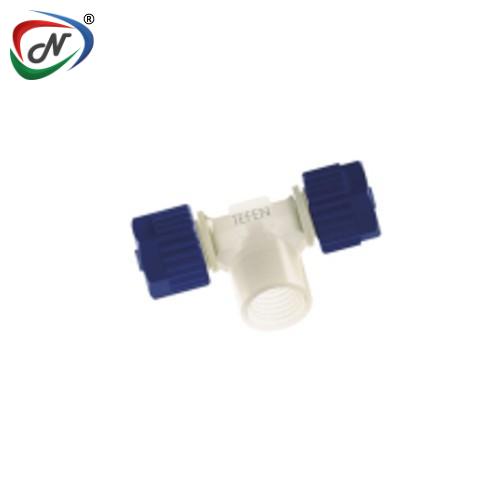

22057305041 BSPT Female Branch Barb Block Connector

The Tefen 22057305041 is a BSPT female branch Barb-Block connector featuring a ¼ female BSPT threaded branch and a 5/16? (? 8 mm) tube-OD barb. It’s made from PVDF, offering high chemical resistance, and is rated up to 14 bar (200 psi) at 20 °C, with a service temperature range from -20 °C to +120 °C. Ideal for branching plastic tubing into male-thread components in harsh fluid systems.

Main Features:

Material: Constructed from PVDF for superior chemical and thermal resistance.

Connection Type: 5/16 barb with ¼ BSPT female threaded branch for versatile fluid connections.

Pressure Rating: Handles up to 14 bar (200 psi) at 20 °C for reliable performance.

Temperature Range: Suitable for –20 °C to +120 °C operating conditions.

Design: Compact branch configuration enables efficient multi-line fluid routing in tight spaces.

Main Specifications:

Unit type	Imperial
Material	PVDF
Thread Type	BSPT
Color	White & Navy Blue

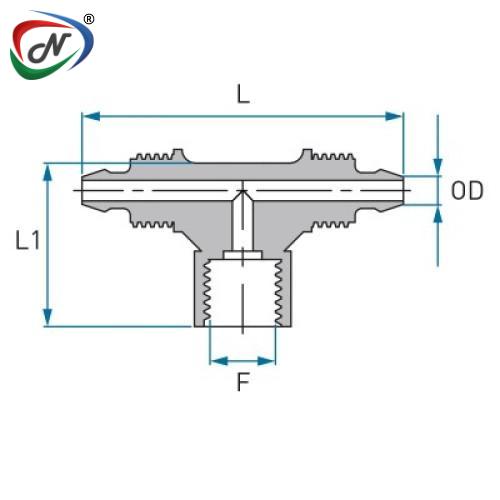

L mm	46.8
F BSPT	1/4
L1 mm	27.2
Tube OD inch	5/16
Outer D	5/16
Temperature Range	-20°C up to +120°C
Working Pressure	Up to 14 bar (200 psi) at +20° C
