22046646048 BSPT Female Connector

#NESPLTEFEN40

Product Description

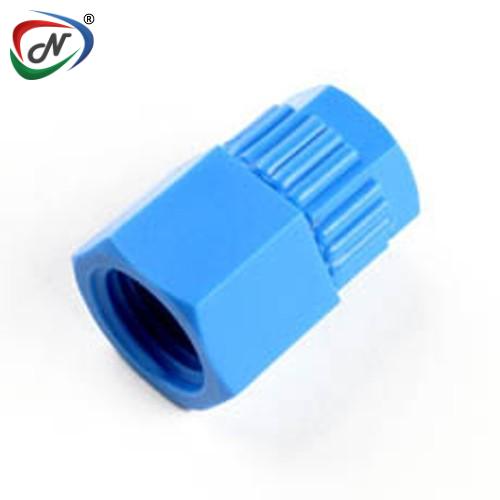

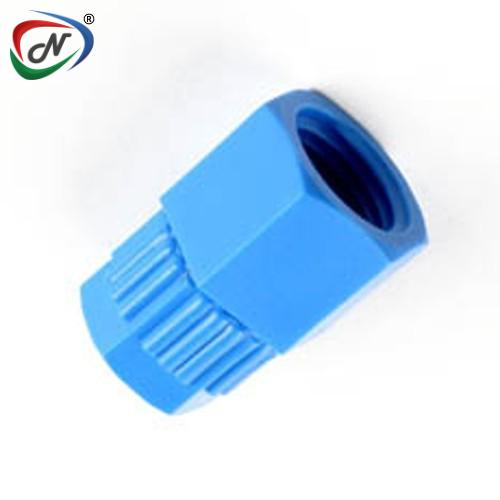

The 22046646048 is a Tefen straight female connector with a BSPT (British Standard Pipe Taper) thread, designed to attach to a 6?mm outer-diameter tube. It is made from fiberglass-reinforced polypropylene, giving it strength and chemical resistance. The fitting is rated for up to 14 bar (200 psi) at 20°C and supports a temperature range from +4C to +90°C. It is coloured blue for easy identification.

Main Features:

BSPT female thread (¼) — compatible with standard tapered pipe threads.
6?mm tube port — designed for 6 mm outer-diameter tubing.
Fiberglass-reinforced polypropylene — offers chemical resistance and mechanical strength.
High working pressure — supports up to 14 bar (200 psi).
Operating temperature range — suitable for +4°C to +90°C.

Main Specifications:

Unit type	Metric
Material	Reinforced Polypropylene
Thread Type	BSPT
Color	Blue
Temperature Range	+4° C up to +90° C (+40° F up to +195° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C
D	16 mm
C	11 mm
d small	5.2 mm
Carton Quantity	350
L mm	27.8
F BSPT	1/4
Tube OD mm	6
SW mm	17
