22045605048 Reducing Connector

#NESPLTEFEN38

Product Description

The 22045605048 is a reducing barb?block connector manufactured by Tefen, made from reinforced polypropylene for high strength and chemical resistance. It transitions from a 5/16 (OD) tube to a 1/4(OD) tube, helping downsize fluid lines efficiently. The connector has a navy-blue body, measures ~32.7mm in length, and features a wrench flat (SW) of 14?mm. It is rated for up to 14bar (200psi) at 20?°C.

Main Features:

Reducing design — converts 5/16 OD tubing to 1/4 OD tubing.
Reinforced polypropylene construction — durable and chemically resistant.
High working pressure — rated up to 14bar (200psi) at 20°C.
Temperature tolerance — suitable for use between +4°C and +90°C.
Standard wrench size (14mm) — for easy tightening or loosening.

Main Specifications:

Unit type	Imperial
Material	Reinforced Polypropylene
Thread Type	BSPT
Color	Navy Blue
Temperature Range	+4° C up to +90° C (+40° F up to +195° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C

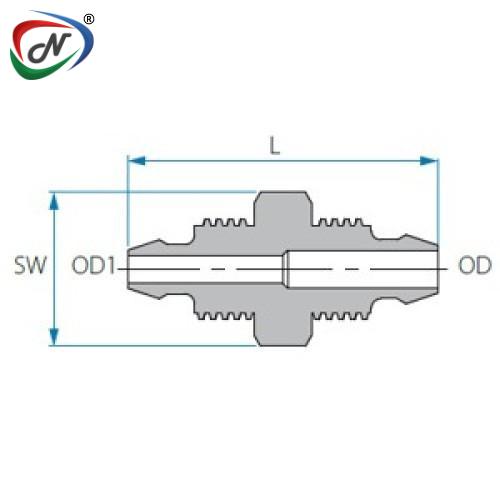

D	16 mm
d small	6.2 mm
Carton Quantity	400
L mm	32.7
SW mm	14
Tube OD inch	5/16
D1	16 mm
SW2	14 mm
Tube OD1 inch	1/4
