22006944022 Male Elbow

#NESPLTEFEN14

Product Description

22006944022 Male Elbow

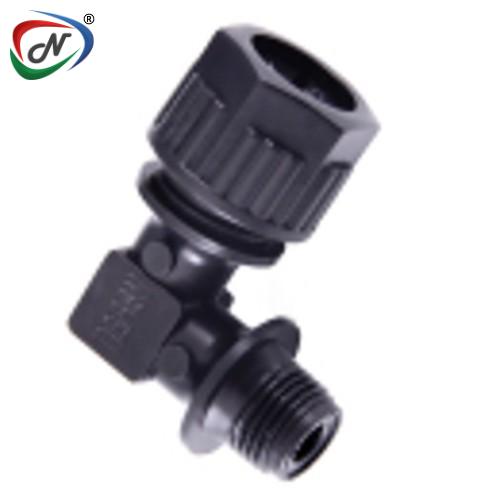

The Tefen Male Elbow Connector (22006944022) is a compact 90° fitting crafted from high-performance fiberglass-reinforced polypropylene. One end connects to a flexible tube via a push-on barb and nut system, while the other features a male BSPT thread for easy integration with female-threaded components. Built for durability, it resists chemicals and offers strong pull-out strength.

Main Features:

90° Elbow Design – Ideal for tight spaces and angled connections.

Push-On Barb + Male BSPT Thread – Connects tubing on one end and threaded components on the other.

Fiberglass-Reinforced Polypropylene – Strong, lightweight, and chemically resistant.

Main Specifications:

Cat. No.	Tube OD mm	M (BSPT)	Color
22006944022	4	1/8"	Black
22006944042	4	1/4"
22006946022	6	1/8"
22006946042	6	1/4"
22006948022	8	1/8"
22006948042	8	1/4"
22006950042	10	1/4"
22006950062	10	3/8"
22006952062	12	3/8"
22006952082	12	1/2"
Cat. No.	Tube OD inch	M (BSPT)	Color
22006903022	3/16"	1/8"	Black
22006903042	3/16"	1/4"
22006904022	1/4"	1/8"
22006904042	1/4"	1/4"
