22006544002 Union Elbow
#NESPLTEFEN13
Product Description
22006544002
Union Elbow

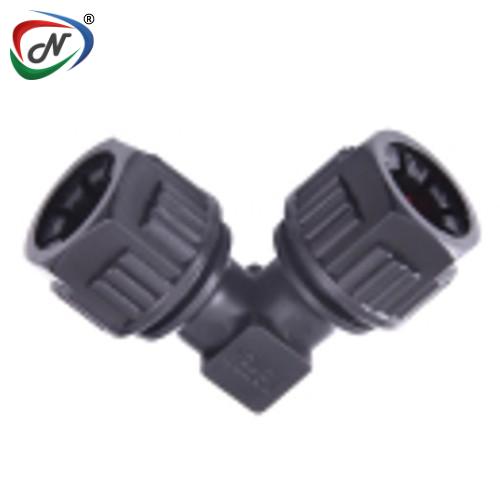

The Tefen
Union Elbow Connector (model 22006544002) is a fiberglass-reinforced
polypropylene push-on fitting that connects two co-axial tubes at a 90° angle.
It employs a nut and barb push-on seal design—no O-rings required—and offers
excellent chemical resistance and pull-out strength. Designed for pneumatic and
hydraulic applications, it operates at pressures up to 14-bar (200psi) at 20°C and handles temperatures from 0°C to 90°C.
Main Features:
- 90° Elbow Design – Connects two tubes at a
right angle for space-efficient routing.
- Push-On Nut & Barb System – Ensures a
secure, leak-free connection without O-rings.
- Fiberglass-Reinforced Polypropylene – Offers
excellent strength and chemical resistance.
Main Specifications:
|
Cat. No. |
Tube OD mm |
Color |
|
22006544002 |
4 |
Black |
|
22006546002 |
6 |
|
|
22006548002 |
8 |
|
|
22006550002 |
10 |
|
|
22006552002 |
12 |
|
|
Cat. No. |
Tube OD mm |
Color |
|
22006503002 |
3/16" |
Black |
|
22006504002 |
1/4" |
|
|
22006505002 |
5/16" |
|
|
22006506002 |
3/8" |
|
|
22006508002 |
1/2" |
|
Various Industry Products
Additional Information
| NESPL Code | NESPLTEFEN13 |
| Manufacturer Code | 22006544002 |
| Type | Fittings |
