12P16408002 BSPT Pipe T Black

#NESPLTEFEN47

Product Description

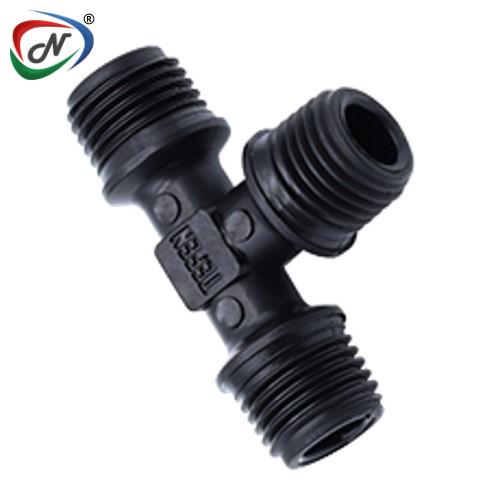

12P16408002 BSPT Pipe T Black
The 12P16408002 is a black BSPT-threaded “T” pipe fitting designed to split or merge flow in a piping system. It uses tapered British Standard Pipe Taper (BSPT) threads, ensuring strong, pressure-tight metal-to-metal sealing when mated with matching female BSPT or BSPP fittings. Its robust construction — often malleable iron or steel with a black finish — offers durability and resistance to wear. The “T” configuration enables fluid or gas flow distribution across three ports, making it ideal for plumbing, hydraulic or pneumatic systems needing branch connections.

Main Features:

T-shape configuration — allows one inlet to split into two outlets (or two inlets to combine into one), facilitating branch connections.
BSPT tapered threads — provides secure, pressure-tight sealing when properly tightened, without needing additional sealing components.
Black finish (malleable iron/steel) — durable and suitable for industrial settings; the “black” style is commonly used for oil, gas, or non-corrosive fluid systems.
High-pressure suitability — BSPT tapered fittings are known for reliable sealing under higher pressures compared to parallel-thread fittings.
Versatile application — usable in plumbing, hydraulic, pneumatic, or general piping systems where branching or flow distribution is needed.

Main Specifications:

Unit type	Imperial
Material	Polypropylene
Thread Type	BSPT
Color	Black
Temperature Range	+4° C up to +90° C (+40° F up to +195° F)
Working Pressure	Up to 14 bar (200 psi)
C	12.5 mm
Carton Quantity	75
L mm	64
L1 mm	40.3
M BSPT	1/2″
