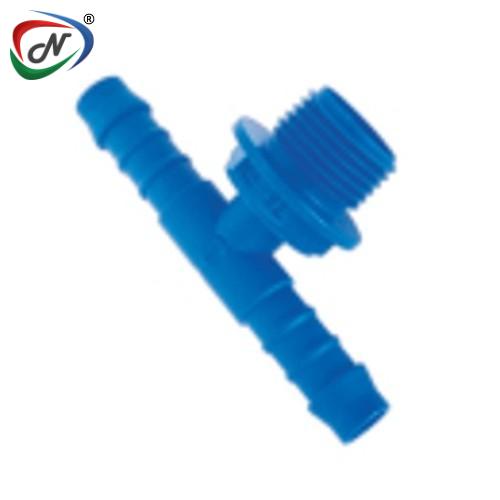

12F47150088 BSPT Flange Branch T Hose Connector

#NESPLTEFEN30

Product Description

The 12F47150088 BSPT Flange Branch T Hose Connector is a sturdy, precision-engineered T-shaped fitting designed for branching fluid lines in industrial systems. It features a BSPT threaded connection for secure, leak-resistant coupling and a flange mount for stable, fixed installation. The branch-T configuration enables efficient splitting or redirecting of flow, making it ideal for hydraulic, pneumatic, and mechanical applications. Built for durability, it ensures reliable performance in high-pressure or demanding environments.

Main Features:

T-shaped branch design for efficient splitting or redirecting of fluid flow.

BSPT threaded connection ensuring secure, leak-resistant coupling.

Flange mount providing stable, fixed installation.

Heavy-duty construction suitable for high-pressure industrial use.

Compatible with hydraulic, pneumatic, and mechanical systems requiring reliable branching.

Main Specifications:

Unit type	Metric
Material	Nylon 66
Thread Type	BSPT
Color	Blue
Temperature Range	-20° C up to +110° C (–5° F up to +230° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C
D	10 mm
C	27 mm
d small	7.2 mm
Carton Quantity	25
L mm	78.9
L1 mm	39.2
M BSPT	1/2
C1	14 mm
Tube ID mm	10
D mm	30
