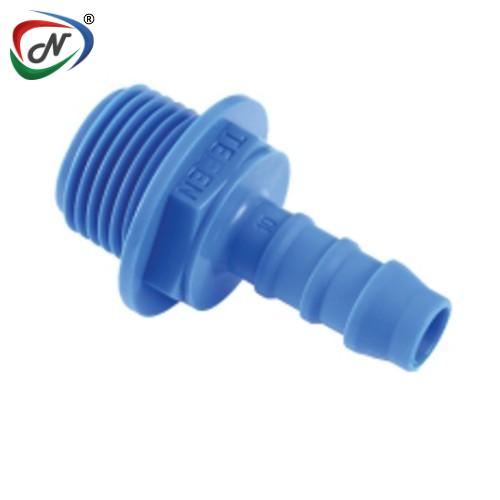

12F46850088 Flange Mounting Male Hose Connector

#NESPLTEFEN28

Product Description

Fittings especially suitable for connecting plastic, rubber of soft PVC hoses in industrial and domestic applications. As these hoses have various wall thicknesses the size is by ID measurement.

The 12F46850088 Flange Mounting Male Hose Connector is a durable, precision-engineered fitting designed for secure hose attachment in demanding industrial systems. Its flange-mount design ensures stable, leak-resistant installation, while the male hose connector provides reliable coupling to compatible hoses. Built to withstand pressure, vibration, and harsh operating environments, it supports efficient fluid transfer and long service life. Ideal for hydraulic, pneumatic, and mechanical applications requiring strong, fixed-point hose connections.

Main Features:

Flange-mount design for secure, fixed-position installation.

Male hose connection ensuring tight, reliable coupling.

High-strength construction suitable for heavy-duty industrial use.

Leak-resistant interface for efficient and safe fluid transfer.

Compatible with hydraulic, pneumatic, and mechanical systems requiring stable hose attachment.

Main Specifications:

Unit type	Metric
Material	Nylon 66
Thread Type	BSPT
Color	Blue
Temperature Range	-20° C up to +110° C (–5° F up to +230° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C

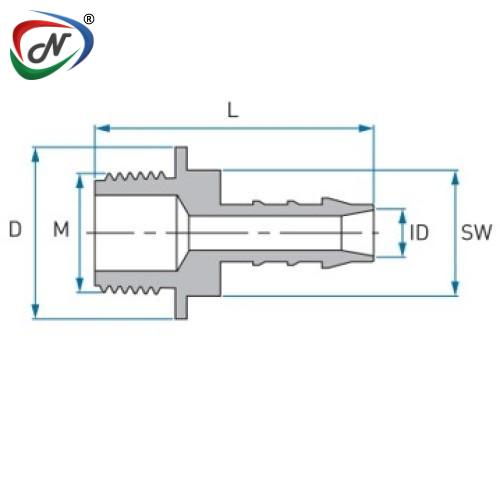

D	10 mm
C	11 mm
d small	7.2 mm
Carton Quantity	25
L mm	49.3
SW mm	22
M BSPT	1/2
C1	27 mm
Tube ID mm	10
D mm	30
