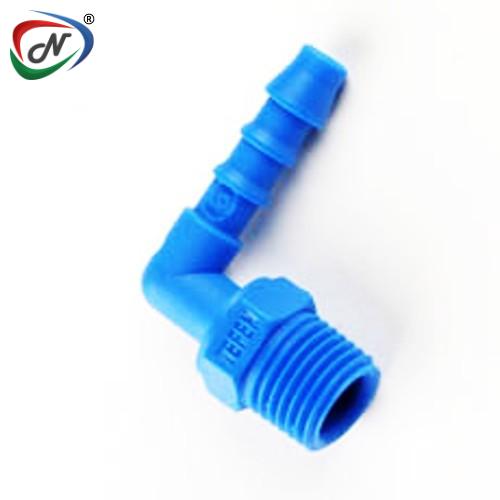

12446950088 BSPT Male Elbow Hose Connector | Blue

#NESPLTEFEN44

Product Description

The Tefen 12446950088 is a blue, 90° elbow hose connector combining a male-threaded BSPT end with a hose barb tail — designed for joining flexible tubing to threaded ports in fluid or pneumatic systems. Made from reinforced polypropylene (or Nylon-66 depending on variant), it provides a compact, right-angle connection that saves space and ensures a secure, leak-resistant joint. It supports up to 14 bar working pressure at 20 °C and functions reliably across a temperature range from –20 °C to +110 °C. Ideal for industrial, irrigation, or pneumatic applications where directional hose routing is needed.

Main Features:

· 90° elbow design — enables compact, space-saving directional changes for hose or tube routing.

· Male BSPT threaded end with hose-tail barb — allows secure connection to threaded ports while holding hose firmly.

· Made from reinforced polypropylene / robust polymer (or Nylon-66) — ensures chemical resistance, durability and longevity.

· Pressure-rated to 14 bar (200 psi) at 20 °C — suitable for moderate-pressure fluid or air flow systems.

· Wide operating temperature range (–20 °C to +110 °C) — works reliably under varied temperature conditions in industrial or domestic setups.

Main Specifications:

Unit type	Metric
Material	Nylon 66
Thread Type	BSPT
Color	Blue
Temperature Range	-20° C up to +110° C (–5° F up to +230° F)
Working Pressure	Up to 14 bar (200 psi) at +20° C
D	10 mm
C	27 mm
Carton Quantity	300
L mm	45.5
L1 mm	37.8
M BSPT	1/2
C1	13 mm
Tube ID mm	10
SW mm	22
