12356909081 NPT Male Elbow Hose Connector

#NESPLTEFEN24

Product Description

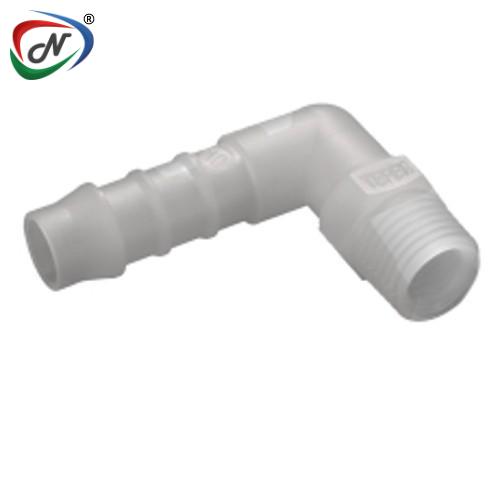

12356909081 NPT Male Elbow Hose Connector

The Tefen 12356909081 NPT Male Elbow Hose Connector is a 90° elbow hose to thread connector featuring a ½ NPT male thread and a 9/16 hose barb (tube ID) connection. It is constructed of chemical resistant PVDF material, rated for up to 14 bars ( 200 psi) at 20 °C, and operable across a temperature range from –20 °C to +120 °C. Its compact elbow design simplifies tight space installation while delivering reliable flow connection in demanding systems.

Main Features:

Material: Made of PVDF (Polyvinylidene Fluoride) for excellent chemical and thermal resistance.
Connection types: 9/16 hose barb on one side and ½ NPT male threaded port on the other.
Elbow design: 90° male elbow configuration for compact installation and efficient routing.
Pressure & temperature rating: Up to ~14 bar ( 200 psi) at 20 °C, and operating temperature from –20°C to +120°C.
Durable seal-free design: Tubing retained via barb (no rubber seals) for long life in harsh fluid systems.

Main Specifications:

Unit type	Imperial
Material	PVDF
Thread Type	NPT
Color	White

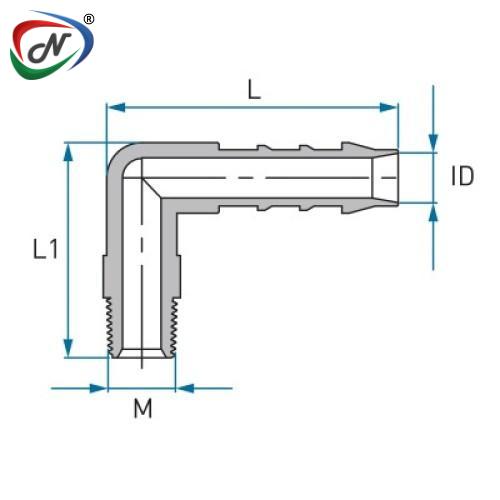

L mm	51.4
L1 mm	48.6
M NPT	1/2
Tube ID inch	9/16
Inner Diameter	9/16
Temperature Range	-20°C up to +120°C
Working Pressure	Up to 14 bar (200 psi) at +20° C
