12356504001 Union Elbow Hose Connector

#NESPLTEFEN26

Product Description

12356504001 Union Elbow Hose Connector

This 90° union elbow hose connector is designed for tubing of ¼ (6mm) outer diameter. Made from high resistance PVDF (or nylon in some variants) the fitting offers strong chemical and thermal durability. It supports a working pressure up to ~14bar (200 psi) at 20°C, and operates in a 20°C to +120°C range (depending on material). Ideal for tightspace hose routing in industrial fluid systems.

Main Features:

Reinforced plastic construction (PVDF/advanced polymer) delivering excellent chemical resistance and durability in tough environments.
90° union elbow Hose Tail to Hose Tail design for compact routing and change of direction in fluid/hose systems.
High working pressure up to around 14 bar (200 psi) at 20 °C – suitable for industrial fluid/air applications.
Wide operating temperature range (20 °C up to +120 °C) allowing use in a variety of thermal conditions.
Optimised for tube x tube connection: matching hose/tube OD so that the fitting mates accurately without extra adapters, simplifying installation.

Main Specifications:

Unit type	Imperial
Material	PVDF
Color	White
Temperature Range	-20°C up to +120°C
Working Pressure	Up to 14 bar (200 psi) at +20° C
Carton Quantity	25

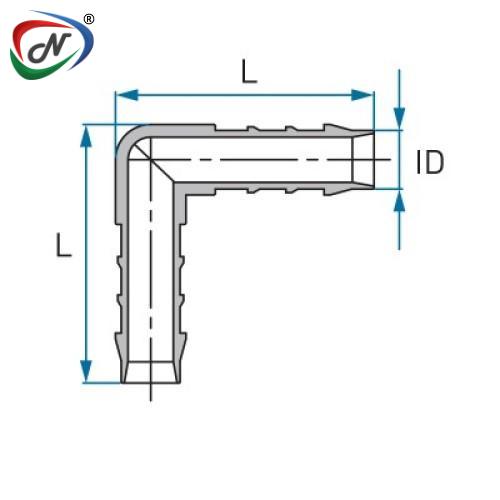

L mm	35.5
Standard	Approved by NSF/ANSI 61 - Health effects
Tube ID inch	1/4
