12081645006 Plug - Hose Connector
The 12081645006 is a Tefen quick-release plug designed for 5mm internal diameter (ID) hose connections. It’s made from acetal (polyoxymethylene), giving it resistance to wear and chemicals. The plug uses a push-to-connect mechanism, locking firmly into a matching Tefen socket via a movable outer sleeve. When disconnected, the socket’s internal valve closes automatically to prevent leaks. Rated for up to 14 bar (200 psi) at 20°C, it works in the temperature range of 20°C to +110°C.
Main Features:
Hose tail connection for 5mm ID tubing.
Acetal construction — durable, low-friction, and chemical resistant.
Quick-release push-to-connect mechanism — enables fast and easy coupling.
Sealing check when disconnected — matching socket has a shut-off valve.
High working pressure and broad temperature range — 14 bar at 20°C; 20 °C to +110 °C.
Main Specifications:
Material | Acetal |
Color | Red |
Temperature Range | -20° C up to +110° C (–5° F up to +230° F) |
Working Pressure | Up to 14 bar (200 psi) |

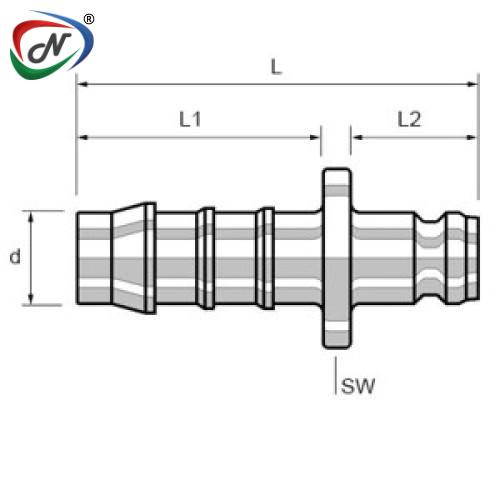

d small | 7.2 mm |
Carton Quantity | 25 |
L mm | 37.8 |
Tube ID mm | 5 |
D mm | 16.7 |
Various Industry Products
| NESPL Code | NESPLTEFEN36 |
| Manufacturer Code | 12081645006 |
| Manufacturer | TEFEN |
| Type | Fittings |
